Holz-her 1436 sel edgebander 3MM scrapers, jump buffing

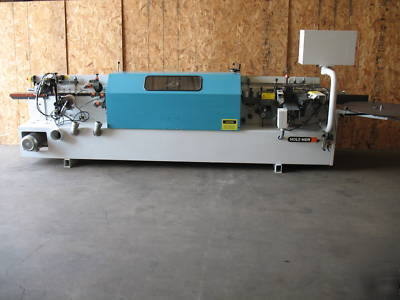

1997 HOLZ-HER 1436 SEL FOR REPAIR
* MAX 3/8" SOLID WOOD BANDING & 3mm PVC 1-3/4" MAX.PANEL THICKNESS AND 5-1/2"MIN PANEL LENGTH
* CARTRIDGE GLUE SYSTEM W/HOPPER FEED & QUICK MELT FEATURE, AUTOMATIC MAGAZINE FOR COLE, STRIP & SOLID EDGEBANDING, HD GUILLOTINE FOR 3mm PVC
* PRESSURE SECTION WITH (1) LARGE AND (2) SMALLER IDEL ROLLERS W/QUICK ADJUSTMENT TO EDGE THICKNESS, POWERED 1ST ROLLER WITH ELECTRONIC SPEED CONTROL SYNCHRONIZED WITH CHAIN FEED SPEED

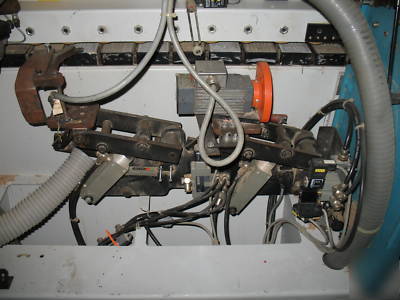

* DOUBLE MOTOR END TRIM 0.3HP 9,000RPM MOTORS

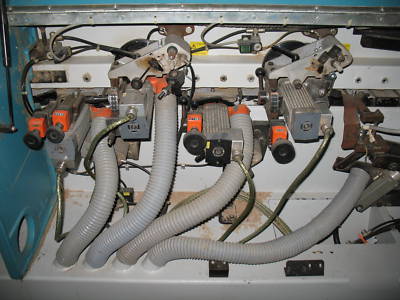

* TOP & BOTTOM FLUSH TRIM 1.HP 18,000RPM MOTORS
* TOP & BOTTOM FINE & RADIUS TRIM 1.HP 18,000 RPM MOTORS

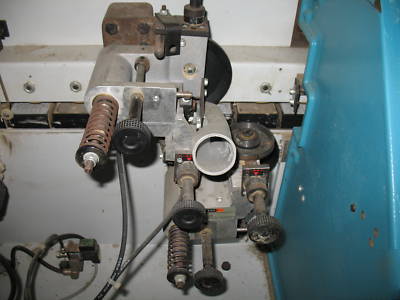

* TOP & BOTTOM PROFILE SCRAPERS FOR 3mm THICK PVC BANDING

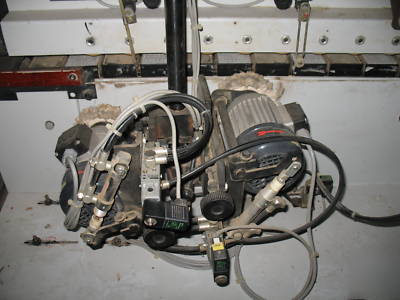

* TOP & BOTTOM JUMP BUFFING .25HP 2,600RPM
* NOTE: NEEDS REPAIR , PARTS NEEDED
* *(1) 4 KVA FREQUENCY DRIVE/CHANGER $_________
* *(1) END TRIM MOTOR $455.00 NEW
* *CIRCLE SAW TRIM BLADE $87.00 NEW
* *(?) MAY NEED (1) FINE TRIM MOTOR $471.00 NEW
* *NEEDS ABOUT (35) CONVEYOR PLASTIC/RUBBER PADS $12.05 EACH NEW
* *SMALL HAND WHEEL MISSING $109.00 NEW
