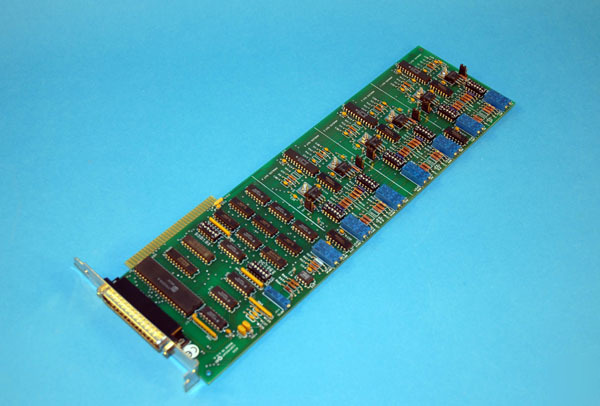

D/a-06A six channel analog output card rev e
Six Channel Analog Output Card
In Like-New Condition- Sold with 7 day right of return.
Six independent analog outputs
Voltage Output Ranges: 0-5V, 0-10V, 2.5V, 5V, 10V
Current Output Ranges: 0-20mA, 4-20mA, (0-50mA and 10-50mA optional)
Individual range selection per channel
Three update modes including simultaneous update
Additional 24-bit parallel digital input/output port
Link to Product Manual is found HERE
Model D/A-06A can be installed in I/O slots of PC/ XT/AT class computers. It economically provides six independent 12-bit Digital-to-Analog Converters (DAC) and 24 digital input/output channels. Each DAC has double-buffered input for single step update and occupies a unique address location. Analog Output Update Mode is selected by a selector switch on this card. Three update modes are available:
Individual update of each channel.
Simultaneous update of all selected channels.
Simultaneous update of all selected channels upon receipt of an external signal.
(Note: This mode requires use of six digital I/O lines on Port C.)
Digital I/O channels are provided from a type 8255 Programmable Peripheral Interface (PPI). The PPI has 24 I/O bits which may be programmed in three modes of operation:
Mode 0: Each group of 8 I/O bits may be setup to be input or output.
Mode 1: Each group may be setup to have eight lines of input or output. (Note: in this mode, three lines are used for handshaking and interrupt-control signals.)
Base address selection is via on-card DIP switches and the D/A-06A requires 16 consecutive I/O address locations. The base address can be selected anywhere within the I/O address range of 000-3FF (hex) providing that the address locations do not overlap other functions. Data are written to the DAC's in right-justified 2-byte binary format (8 LSB's and 4 MSB's).
This item came out of a perfectly good working instrument that per the client's request needed to be disassembled to prevent
unintentional technology transfer.
This item was removed by a professional technician in a static free environment.
Therefore, we are able to sell this lot with a 30 day warranty.
