> Brand hydraulics b series flow divider valve B100-3/8
Brand hydraulics b series flow divider valve B100-3/8

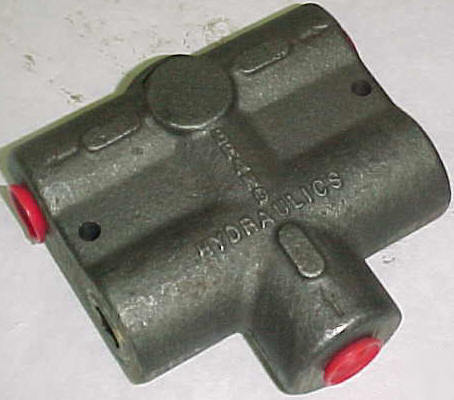

Brand Hydraulics Flow Divider Valve
3/8" NPT ports, free reverse flow for both outlets and
B Series General Specifications:
Rated for 3000 psi (207 bar).
30-Micron filtration recommended.
Delrin Free Reverse Check Seat
The Brand, non-adjustable, proportional flow divider comes in two basic models B50, and B100. The B series receives a single stream of fluid and divides it into two output streams. The ratio of division to the two outlets will remain constant even though the work being done by one of the streams is much greater than the work being done by the other. The ratio of the outlet flows, remains constant even when the input flow increases or decreases. B100AB-is very similar to the B100 in that it is a non-adjustable proportional divider and has free reverse flow for both outlets, in addition it offers automatic adjustable bypass for each outlet. If one cylinder ends its stroke ahead of the other, the bypass to the lagging cylinder will automatically open and allow the lagging cylinder to finish its stroke. The two outlet flows are pressure compensating and the sum of said flows equals the inlet flow.
