Chattanooga intelect legend dual frequency ultrasound

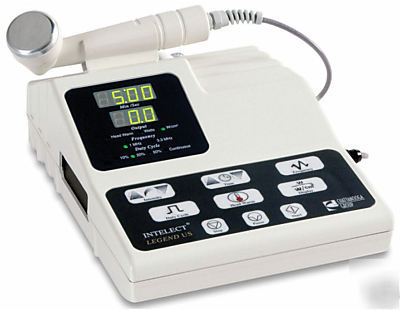

New Chattanooga Intelect Legend Dual Frequency Clinical Ultrasound # INT 001
We are authorized dealers for Chattanooga so your purchase will be covered under full mfg warranty
The Intelect Legend US, designed and manufactured by Chattanooga Group offers a new dimension in ultrasound therapy made possible by advanced software design and digital signal processing. The result is a unit with extraordinary versatility based on simplicity of operation.
The Intelect Legend US allows you to select a frequency of 1 or 3.3 MHz without changing sound heads. Sound heads are available in 2 cm2(optional) , 5 cm2(included) and 10 cm2(optional) and include the patent pending Electronic Signature feature. Duty cycle may be set at 10%, 20%, 50% or Continuous.
Features of the Intelect Legend Ultrasound
Automatically calibrate the system to any size Intelect Legend sound head.
A new ergonomic design that offers a 20 degree contour in the applicator hand grip. This ergonomic extra will help deliver uniform ultrasound with greater clinician comfort.
A feature traditionally available in more expensive brands of ultrasound. This will help curb the anxiety of patients during the first moments of treatment.
In just two steps you are ready to start treatment, just set Intensity and press Start.
Digital electronics and new user interface design give you simple tactile touch control of all system parameters.
Programmable Start-Up Presets
All power-up presets can be individually customized to meet the clinician s needs.
1. LED Screen Display - LED Parameter Display Field.
Displays Treatment Time, Output Intensity, Frequency, Duty Cycle, Display and Head Warm.
Membrane switches control LED screen display and treatment parameters.
Select this prompt to set or modify output power intensity.
Select this prompt to set or modify treatment time in minutes.
Select this prompt to change to a frequency of 1 MHz or 3.3 MHz.
Select this prompt to change to a duty cycle of 10%, 20%, 50% or Continuous.
Select this button to warm the head of the ultrasound applicator prior to treatment.
Select this button to change output display from W/cm2 (Intensity) to Watts (Power).
Select this prompt to stop a treatment session.
Select this prompt to pause a treatment session.
Select this prompt to begin a treatment session.
Technical Specifications for Intelect
4.0 cm2 +/- 1.0 cm2 for the 5 cm2 crystal
Maximum beam non-uniformity ratio:
Variable from 0 Watts to 20 Watts, 10 cm2 crystal at 1.0 MHz, 1 - 10 Watts at 3.3 MHz
Variable from 0 Watts to 10 Watts, 5 cm2 crystal
Variable from 0 Watts to 4 Watts, 2 cm2 crystal
+/- 20% for any output above 10% of maximum
Temporal Peak / Average Intensity Ratio
2:1 +/- 20% for 50% Duty Cycle
5:1 +/- 20% for 20% Duty Cycle
9:1 +/- 20% for 10% Duty Cycle
1 MHz or 3.3 MHz, modulated 100% by the 100 Hz rectangular wave with the selected Duty Cycle
1 MHz or 3.3 MHz, nominal signal that is activated as long as the timer is operating
* 5cm2 Sound Head Applicator
* Conductor Ultrasound Gel - 8.5 oz (250 ml) Bottle (1x)
