> Zoom microscope 6.4:1 / watec camera / mount / monitor
Zoom microscope 6.4:1 / watec camera / mount / monitor

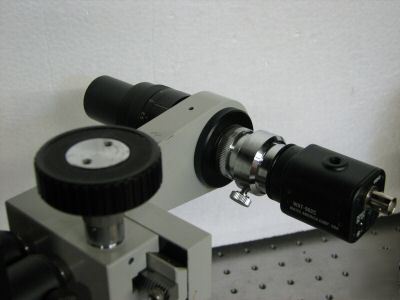

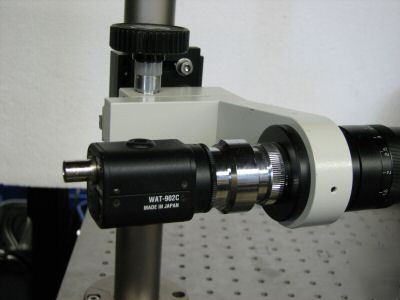

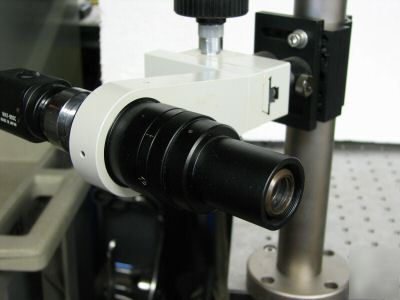

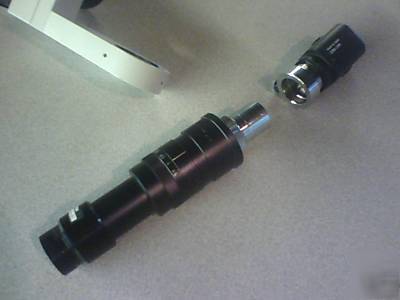

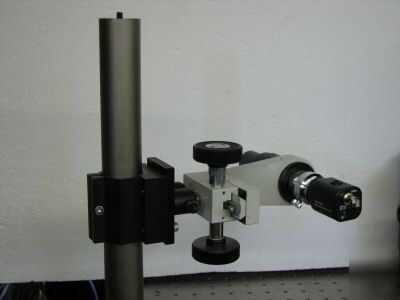

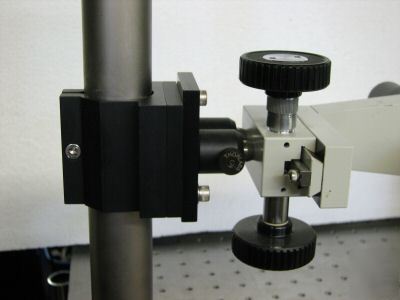

6.4:1 Zoom Microscope, S-Mount,
with Watec 902C /2" Progressive Scan CCD Video Camera System
and Toshiba 13" CM1310A Monitor
Includes 6.4X Zoom Microscope lens, 0.75X auxiliary lens, 450-lines resolution (768-H x 494-V) SC / S-mount camera with EIA BNC analog output, power supply, rack and pinion focusing mount, vertical and lateral adjustment via Thorlabs 1.5" post mount system. Also includes Toshiba CM1310A monitor and Optem adaptor 25-70-14-01 to couple Nikon Coolpix 900/4500/5000 series cameras to this 25 mm phototube.
Minimum Sensitivity: 0.01 lux at F1.4
Electronic Shuttering: 1/120 - 1/100,000 sec., On/Off
Auto Iris with Backlight Compensation
See product description and spec sheets, including imaging tutorial at: http:// /catalog/product_info.php?products_id=45482&osCsid=4a23052d9eb954935076e20fcdf22e0d ; http://cheville.ecen.ceat.okstate.edu/photonicslab/labratory_catalog/Instruments/Imaging/ccd_camera/Watec_902C/watec_902C.htm ; http:// /onlinecatalog/DisplayProduct.cfm?productid=1361 ; http:// /NewGroupPage9.cfm?ObjectGroup_ID=170&Visual_ID=1837 ; http:// /item.aspx?itemid=f24d53e3-7e8f-403f-9577-fbd6f4049e3c&rfr=FROOGLE
New price: $2303 = $344 + $995 + $195 + $225 + $318 + $226
