Polytron pt-mr 3100 w pt-da 3020 /2 wec aggregate stand

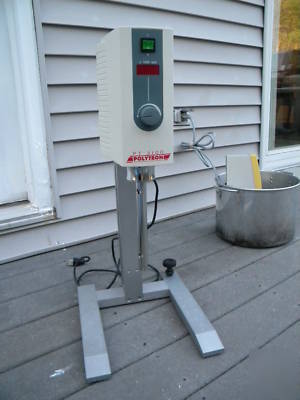

This is a Polytron PT-MR 3100 W PT-DA 3020 /2 WEC Aggregate, Stand

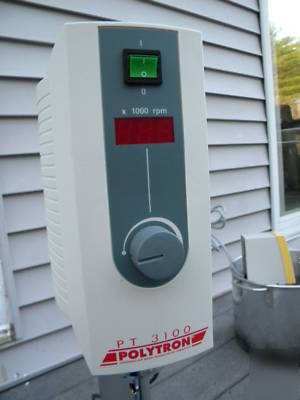

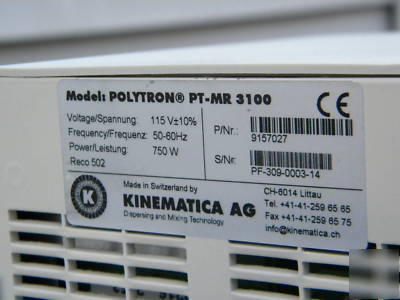

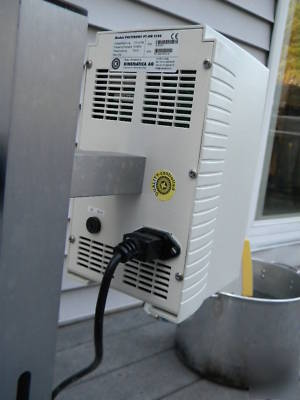

* Polytron PT-MR 3100 Homogenizer
* Stand PT-ST 3001 (Without adjustable table)

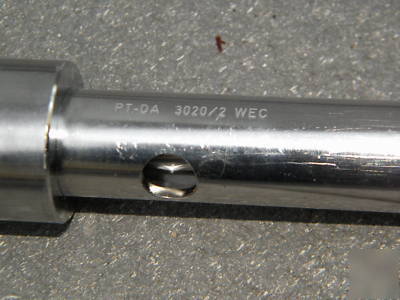

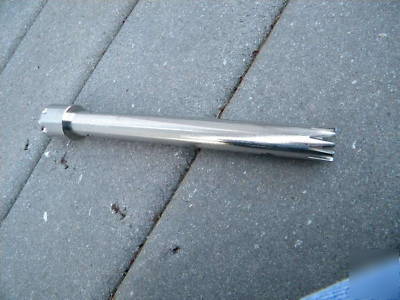

* Kinematica PT-DA 3020 /2 WEC Aggregate
Please note that the Stand PT-ST 3001 does not have the adjustable table that you can see in the pictures on the brochure (Link is included below).
Description and Specification for the Kinematic Polytron PT-MR 3100:
The POLYTRON PT 3100 dispersing unit is the result of innovative development work and is another new family member in the wide product range of KINEMATICA dispersing devices for the use in laboratories.
The system PT 3100 with its powerful 750 Watt PT-MR 3100 drive can be equipped with more than 20 different and exchangeable POLYTRON dispersing aggregates according to the rotor/stator principle.
Therefore the PT 3100 system offers its user solutions for a wide range of dispersing and homogenizing applications with volumes between approx. 0.1 ml and 3000 ml.
The following features particularly distinguish the system PT 3100:
* powerful drive with 750 watt
* up to 27 000 rpm and up to approx. 36 m/s tip speed without load; max. rpm values depend on the chosen dispersing aggregate and product properties
* sound-proof to approx. 72 dB A
* intelligent control with LED display for speed indication
* soft-start, overload protection and speed stabilisation
* more than 20 different and interchangeable dispersing aggregates
* connection for programmable RECO control unit
* 3 different stand models (The PT-ST 3001 is included with this unit, minus the adjustable table)
Of course also this KINEMATICA product complies to all mechanical and electrical regulations, especially in regard to product safety and bears the CE mark.Intelligent Control
The integrated electronic control unit maintains a constant speed up to the load limit of the drive, which is especially important with a changing viscosity of the product. When this load limit is reached, the electronic
overload protection activates. The speed is now controlled to the maximum possible motor load. The actual speed is continually displayed on the three-digit LED digital readout.Coupling Safety
solution for your homogenising, dispersing, emulsifying, suspending, size reduction and wet milling application is offered by KINEMATICA.
* HIGH END LINE, lab range MEDIUM
* powerful drive unit with 750 Watt
* up to 28 000 rpm and up to approx. 40 m/s tip speed (depending on the dispersing aggregate and the load)
* intelligent control with LED display for speed indicaiton
* soft start, overload protection and speed stabilisation
* more than 20 different and exchangeable dispersing aggregates
* connection for programmable RECO - control unit with RS 232 interface
* three different stand models (H shaped security stand with vessel holder and vessel lift, telescopic stand, ECO LINE stand)
* dispersing, homogenizing, extractions, cell disruption, mixing, emulsifying, suspending
Description and Specification for the Kinematic Dispersing Aggregate PT-DA 3020 /2 WEC:
* Google search where you can see that the PT 3100 sells for $5060.00 new with the stand. The 20mm Polytron PT-DA 3020/2 Standard Generator for PT3100 or PT6100 Series Homogenizers sells for $1,690.00 New
