Laboratory laser diode module and optics lot

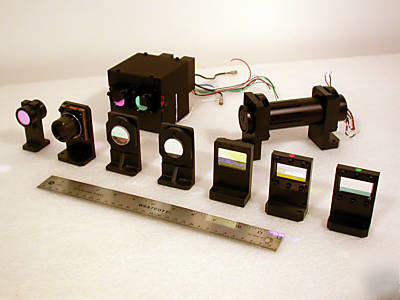

The laser and all the optics sit at the same height and were designed to be used together. The optics include:
1) 25mm Beamsplitter (with angular adjustment)
1) 25mm First surface mirror (with angular adjustment)
1) 24mm 635nm Knife edge interference filter (Filter is "mounted")
1) 20mm Polarizer (Polarizer is "mounted")
3) Dichronic Filters, RGB, 36mm X 25mm
Also the black box with two filters mounted on the front, contains two focusable 25mm objectives which focus down to two seperate pinholes. (Pics below of it disassembled) Behind the pinholes stare two Hamamatsu "Modular" PMT's. The PMT's have built in HV power supplies so only require 12v to operate. The PMT's should work but no guarantees they do. All the optics and laser were in a tightly sealed enclosure so everything is in very good condition.
