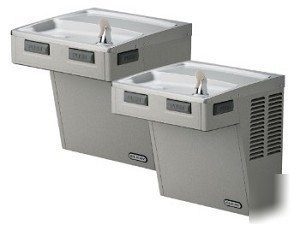

Elkay bi-level wall mount ada water cooler (EMABFTL8L)
ELKAY EMABFTL8LC Wall Mount ADA Cooler
Elkay Model EMABFTL8LC is a self-contained, double wall hung electric refrigerated, water cooler. Capacity 8.0 GPH of 50 F drinking water, based upon 80 F inlet water and 90 F ambient. All models have a hooded stream projector with self closing push bars on front and both right and left sides. Patented* valve with built-in flow regulator provide constant stream from 20 to 105 psi (138 to 724 KPa) water pressure. Bubbler orifice fully protected to meet all sanitary codes. NOTE: Minimum 40 psi supply line pressure required in special circumstances where both sides of bi-level are in use simultaneously to ensure adequate stream height. Does not apply to non-refrigerated units. Pressurized stainless steel evaporator/storage tank for long life. Waterways are certified NSF/ANSI 61, far exceeding the requirements of the Safe Drinking Water Act. Stainless steel water tank is located after bubbler valve, so that the tank is subject to line pressure only when push bar is pressed. ADA COMPLIANTThese Water Coolers comply with the requirements of A.D.A. (Americans with Disabilities Act) when properly installed. Also meets the guidelines for children s environments providing the floor to orifice height is 30" or less and proper clear floor space is provided for parallel approach. (Based on Architectural and Transportation Barriers Compliance Board final ruling.) Check Local and State Codes.
