> New dividing head set semi-universal 7-1/2 inch swing-
New dividing head set semi-universal 7-1/2 inch swing-
* Provides high accuracy with little backlash for a smooth rotation
* Featurews easy indexing of divisons from 2 to 50 and most numbers up to 380

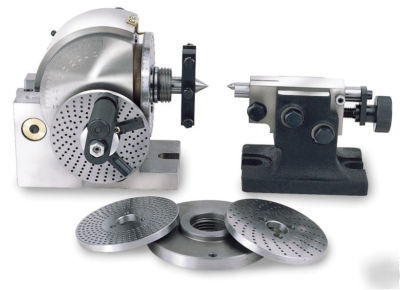

* 3 dividing plates enable you to use different sizes (included)
* Adjustable tailstock allows you to work on various size workpieces (included)
* Ruggedly constructed of hardened and ground worm gear
* Set also includes head, center and threaded backplate(thread: 1-1/2"-8) for mounting 3-jaw chuck

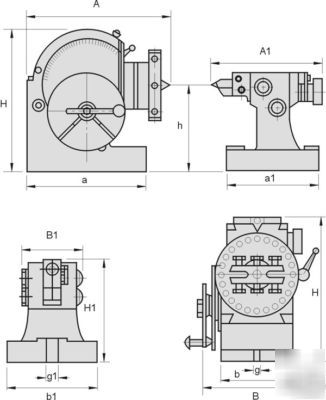

* Center Height (h): 3-15/16"
* Hole Through Spindle (dia.): 0.709"
* Optional 3 Jaw Chuck: 4/5"
* Tailstock Dimension: (A1xb1xH1): 6.6x3.3x4.3"
* Numbers of Hole (Plate A): 15, 16, 17, 18, 19 & 20
* Numbers of Hole (Plate B): 21, 23, 27, 29, 31 & 33
* Numbers of Hole: (Plate C): 37, 39, 41, 43, 47 & 49
