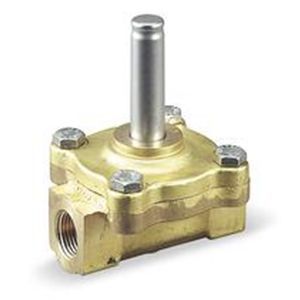

New dayton 1A577 general purpose solenoid valve
* To prevent back flow, add check valve to system.
* Valves having OPD ranges beginning with zero (e. g. , 0 to 300 psi) are direct acting; they will open and close properly as long as line pressures are within that range. Other OPD ranges (e. g. , 5 to 150 psi) designate pilot-operated valves. These open and close properly only if pressure differential between inlet and outlet is within the OPD range.
* Uses: Construction Reference
* Standards: UL; CSA; Fluid Control Institute, Inc. ; National Fluid Power Association (NFPA)
* Note: Maximum suggested cycling rate is 10 times per minute.
* WARNING: Not for use in explosive atmospheres.
Solenoid Valve, Number of Ways 2, Configuration Normally Closed, Pipe Size 1/2 In, Orifice Dia 5/8 In, PSI Differential Min 5, Pressure Differential Max 150, PSI Differential Water 5-150, Safe Working Water PSI 300, GPM Max 43.8, Min Flow Rate 8.0 GPM, Airflow 292(79.2) SCFM, Max Fluid Temp 180 F, Body Material Brass, Gasket Material Buna N, Length 2 3/4 In, Width 2 5/16 In, Center Line Pipe Center Size 9/16 In, Height 3 1/2 In, Agency Compliance UL, CSA, NFPA
