Deckel s-11 tool & cutter grinder w/lots of attachments

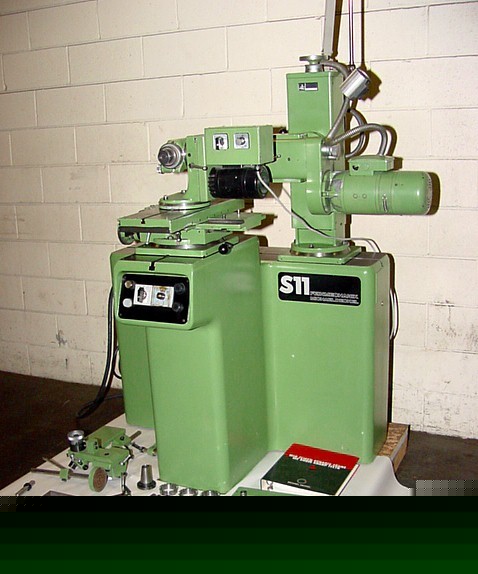

DECKEL S-11 TOOL & CUTTER GRINDER w/LOTS OF ATTACHMENTS
DECKEL UNIVERSAL TOOL & CUTTER GRINDER
** ADJUSTABLE THROUGH 360 DEG. IN 5 AXES **
WORTABLE LONGITUDINAL TRAVEL .................. 7.5"
WORKTABLE CROSS TRAVEL ........................ 4"
SPINDLE, VERTICAL TRAVEL ...................... 13"
SPINDLE AXIAL FEED ............................ 0.187"
MAX. WORKPIECE DIA. BETWEEN CENTERS ........... 13.5"
MAX. WORKPIECE LENGTH BETWEEN CENTERS ......... 37"
SPINDLE COLUMN SWIVEL, HORIZONTAL ............. 360 DEG.
SPINDLE COLUMN SWIVEL, VERTICAL ............... 360 DEG.
WORKTABLE SWIVEL .............................. 360 DEG.
UNIVERSAL INDEX HEAD SWIVE, HORIZONTAL ........ 360 DEG.
UNIVERSAL INDEX HEAD SWIVEL, VERTICAL ......... 360 DEG.
MAX. WHEEL DIAMETER ........................... 5"
MAX. CUT-OFF WHEEL DIAMETER ................... 8"
SPINDLE MOTOR ................................. 1.75 H.P.
SPINDLE SPEED RANGE (RPM) ..................... 2,000 TO 10k
MACHINE TOOL DIMENSIONS ............ 43.3"L x 31.5"W x 69.3H
MACHINE TOOL WEIGHT ........................... 1,145 LBS.
FOR A MORE COMPREHENSIVE DESCRIPTION OF THE DECKEL S11
GRINDER, GO TO <<<<<<<<<<<<<<<<<<>>>>>>>>>>>>>>>>>>
STANDARD UNIVERSAL INDEX HEAD #ST 40 (DECKEL PART #255201)
"SPIRAL & RELIEF GRINDING ATTACHMENT" (DECKEL PART #2580000)
FOR GRINDING TOOLS WITH R.H. OR L.H. FLUTES & FOR RELIEF
GRINDING OF COUNTERBORES, TAPS, SPADE DRILLS & PROFILED
CUTTERS, THE UNIVERSAL INDEX HEAD CAN BE COMBINED WITH
THE TWIST & RELIEF GRINDING ATTACHEMENT. IT'S LEAD RANGE
IS FROM 0 TO INFINITY. THE RELIEF GRINDING MOTION CAN BE
AXIAL, RADIAL OR A COMBINTION OF THE TWO.
"UNIVERSAL WHEEL DRESSER", DECKEL PART #2628000. FOR
PROFILING OF GRINDING WHEELS, RADII & CYLINDRICAL, TAPERED
MOTOR DRIVE FOR UNIVERSAL INDEX HEAD (DECKEL PART #2667000)
PROVIDES INFINITELY VARIABLE SPINDLE SPEEDS FROM 100 TO
1,000 RPM. UNIT ALSO HAS A SWITCH FOR FORWARD & REVERSE.
3) INDEX PLATES (DECKEL PART #2559302)
6 JAW ST-40 CHUCK (DECKEL PART # 2827004)
3) ST-40 COLLETS, 3/4, 7/8, 1.000"
COLLET SLEEVE ST-40 (DECKEL PART #2810004)
TOOTH REST BRACKET (DECKEL PART #2571000)
1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 5/8 & 15MM
Click Here For More Deckel Machines
