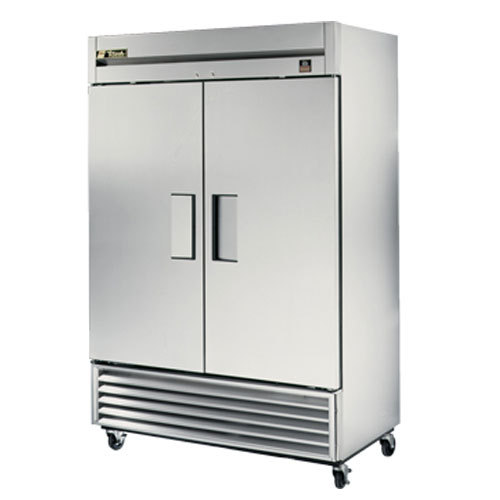

True ts-49F reach-in freezer, 2 stainless steel doors a
Reach-In Freezer, 2 Stainless Steel Doors ALL STAINLESS, 54" Long
True Food Service Equipment Inc TS49F
Freezer, Reach-in, two-section, -10 F, 49 cu. ft., (6) shelves, 300 series s/s exterior & interior w/300 series s/s floor, (2) s/s hinged doors w/locks, digital solar LCD thermometer, 4" castors, 3/4HP, 115v/60/1-ph, NEMA 5-20P, 13.2 amps, MADE IN AMERICA
* True TS series is the choice for the exclusive 300 series stainless steel commercial application.
* Designed using the highest quality materials and components to provide the
* user with colder product temperatures, lower utility costs, exceptional food safety and the best value in todays food service marketplace.
* Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains -10 F (-23.3 C) cabinet
* temperatures. Ideally suited for both frozen foods and ice cream.
* 300 series stainless steel interior and exterior front, sides and door(s). The very finest stainless with higher tensile strength for fewer dents and scratches. Matching aluminum back.
* Adjustable, heavy duty PVC coated shelves.
* Positive seal self-closing door(s). Lifetime guaranteed door hinges and torsion type closure system.
* Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.
* Bottom mounted units feature: No stoop lower shelf.
* Storage on top of cabinet.
* Six (6) adjustable, heavy duty PVC coated wire shelves 24 9/16"L x 22 3/8"D. Four (4) chrome plated shelf clips included per shelf.
* Aluminum shelf support pilasters. Shelves are adjustable on 1/2" increments.
* LIGHTING Incandescent interior lighting-safety shielded. Lights activated by rocker switch mounted above door(s).
* Frame rail fitted with 4" diameter stem castors - locks provided on front set.
* Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 20 amp dedicated outlet. Cord and plug set included.
* Height: 78 3/8" (without 4" casters)
