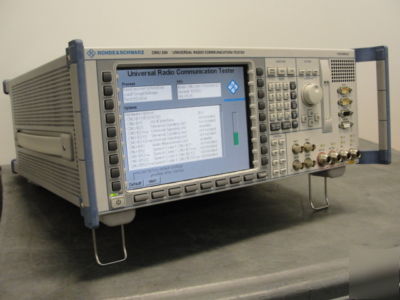

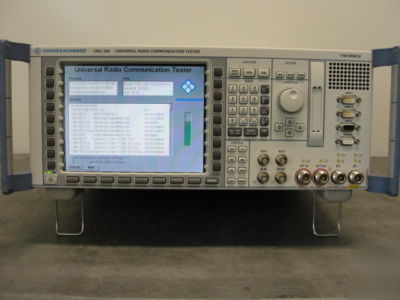

R&s CMU200 radio communications tester *w/ options*
The R&S CMU200 is part of a complete range of mobile radio test equipment, encompassing everything from conformance test systems to system simulators, turnkey functional board test/final test systems and simple sales-counter Go/NoGo testers.
The base unit with its standard-independent module test provides many generalpurpose measurement facilities for the development of all kinds of standards within its wide and continuous frequency range. If extended by the appropriate options, the CMU200 offers the hardware and software necessary to handle your 3G, 2.5G and previousgeneration testing applications, including analog.
The completely modular design of hardware and software components in the Rohde & Schwarz CMU200 eliminates unnecessary investments right from the start merely because a feature might be needed at some point in the future.
Maximum production output in a compact 4-rack-unit-high package with minimum power dissipation allows compact production space layout.
If an expansion becomes necessary because your needs grow, the modularity of the CMU200 concept will make this easy. Many expansions may be installed on site. You pay for them only when you need them.
The R&S CMU200 Universal Radio Communication Tester brings premium cost effectiveness through a variety of features, with extremely fast measurement speed and very high accuracy being the two most important ones. In addition, the secondary remote addressing of the tester s modular architecture makes for intelligent and autonomous processing of complete measurement tasks and fast control program design.
Other key benefits of the Rohde & Schwarz CMU200 include:
Highest speed, accuracy and modularity
We are sure only highest speed, accuracy and modularity should be good enough for your mobile:
Get your mobile on the fast lane
* Highspeed remote processing
* Innovative measurement concepts
* Supporting your need 4 speed
* Real time temperature correction
* Accuracy over whole frequency and dynamic range
Realtime correction for environments around the world
* Frequency and level compensation
* Plug&Test Hardware extension
* Free slots and DSP space available for further extensions
* Individual hardware configuration regarding your needs
* Flexibility due to Plug&Test Hardware extensions
This R&S CMU200 comes with following installed options:
Reference OCXO, aging 2 10 7/year
Versatile Signalling Unit for WCDMA 3GPP FDD
WCDMA (3GPP FDD) signaling module for CMU-B21 ver 14
Versatile baseband board for WCDMA (3GPP FDD) layer 1, DL and UL, non-signaling
2nd TX RF channel with full functionality; for generation of small-band signal (GSM BCCH, channel A) or of wideband signal (WCDMA BCCH, channel B)
GSM400 mobile station signaling/non-signaling test software
EGPRS classic (EDGE) signaling test software for all GSM test software packages
GSM/GPRS Bundle of K21/K22/K23/K24/K42
WCDMA Bundle of K57/K58/K59/K61/K62/K63/K65/K66/K67/K68/K69
DSP module for measurement speed improvement
