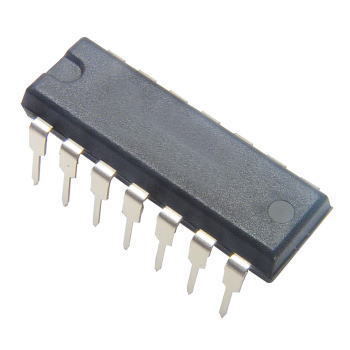

Ics chips: LM2902N quadruple wide supply ranges op amp
- Single Supply . . . 3 V to 26 V
- Dual Supplies . . 1.5 V to 13 V
- Low Supply-Current Drain Independent of Supply Voltage . . . 0.8 mA Typ
- Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
- Low Input Bias and Offset Parameters
- Input Offset Voltage . . . 3 mV Typ
- Input Offset Current . . . 2 nA Typ
- Input Bias Current . . . 20 nA Typ
- Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage . . . 26 V
- Open-Loop Differential Voltage
Amplification . . . 100 V/mV Typ
- Internal Frequency Compensation
