New verity instruments spectrograph SD1024F-ccd optics
NEW Verity Instruments Spectrograph SD1024F-CCD Optics

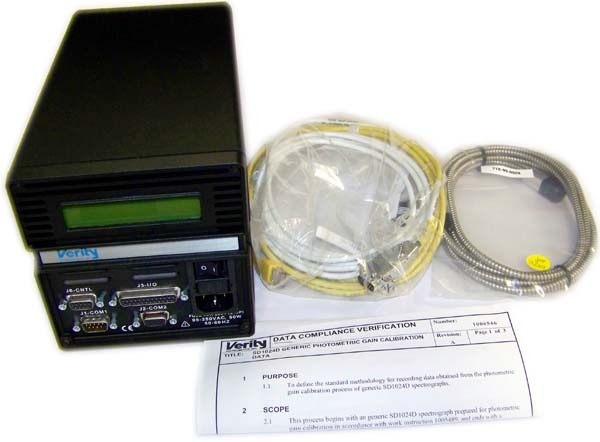

This is a New Verity Instruments High Performance Spectograph SD1024F with Fiber, Ethernet, and USB Cables in original manufacturer's bags. A spectrograph is an instrument that separates light into its different wavelengths (or colors) and looks at the wavelength fingerprints to find out what substance emitted the light or what substance (gas) the light has passed through. The SD1024F was designed for demanding semiconductor process applications. Its optical system employs a 1024-element, scientific-grade CCD array specifically designed for multi-channel spectroscopy, offering high performance. The advantages of the SD1024F include excellent ultraviolet (UV) response (down to 200nm), stability against degradation under UV exposure, high sensitivity, wide dynamic range and superior output linearity. The unique optical platform results in highly efficient imaging of spectral information at the element of the two-dimensional detector array. The item is RoHs Compliant and we include a Data Compliance Verification/Calibration Document as well.
Cosmetically, the item is new but we did open one item strictly for photo purposes. The fiber cables were opened out of the bag but are in excellent condition. We cannot say for sure that they are new. The photos show a typical item. Only what is shown in the photos is included.
* (1) Fiber Optic Cable PN-1002727-119: 300 CM, Stainless Steel Jacket, Mini Bend Radius 2.4"/ 6CM
* (1) Data Compliance Verification and Calibration Document
