> Custom large bbq pit charcoal grill concession trailer
Custom large bbq pit charcoal grill concession trailer
A Serious All-In-One rig. You can cook a brisket, smoke sausage, and charcoal grill a steak at the same time

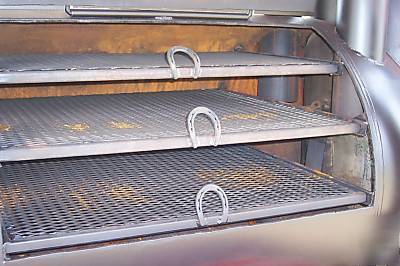

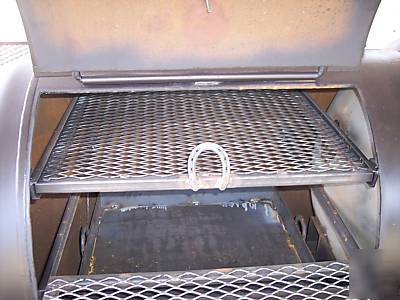

Pit Total pit measures 15ft long and 36 wide. It consists of an 8ft long main chamber that s 36 inches in diameter. Two cooking doors with counterweights make opening a breeze. Three slide out cooking racks per door measuring 36 by 36 and 36 by 33 and 36 by 24 giving you right at 47 square feet of cooking surface!!! The pit is designed with industry standard Reverse Flow. The baffles are made in 3 separate pieces for adjustability. No more hot spots Contact me if you d like a description of its characteristics. I have also taken this concept a step farther and made the reverse flow baffles removable. This makes cleaning a lot easier.
There are 2 stacks with rain caps set to pull the heat out at cooking grate level. They are 6 in diameter and measure 5ft long. Setting them at the same level as the cooking racks keeps the heat in the cooking chamber longer making the pit burn less wood and making the stacks 5ft long allows for a more sustained draw of smoke from the cooking chamber.

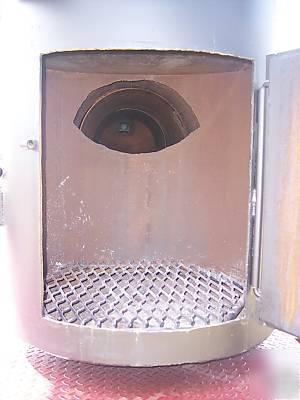

Firebox The pit has a 30 tall by 30 wide firebox with (3) 6 by 4 vents for ample airflow and cooking heat.

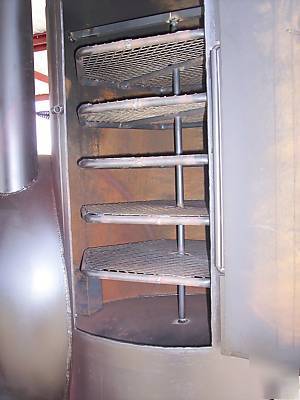

Smoker Sitting on top of the firebox is a 30 diameter by 4ft tall smoker. It is connected to the main chamber by a 6 by 4 vent that can be opened for smoking or shut off completely turning the smoker into a warmer. Inside the smoker is 5 rotating cooking racks that have a combined cooking surface of about 16 square feet. The smoker has its own temp gauge, 4.5 stack and spring steel handles.
Charcoal Grill Welded on the front of the main cooking chamber is a 3.ft long by 30 diameter Charcoal Grill. It is connected to the main chamber via a 6 by 4 vent that can be opened or shut. The Charcoal grill contains 2 cooking racks, 28 by 27 and 24 by 27 for a total grilling surface of around 10 square feet. The grill has an adjustable charcoal tray measuring 2ft long by 2ft wide and its own 6 by 4 vent to feed the charcoal fire. Finally it has twin 3.5 diameter stacks with ran caps. See photos.
NOTE: If you decide to use the entire pit surfaces to cook using the firebox you have a grand total of 73 sq ft of cooking surface!!!

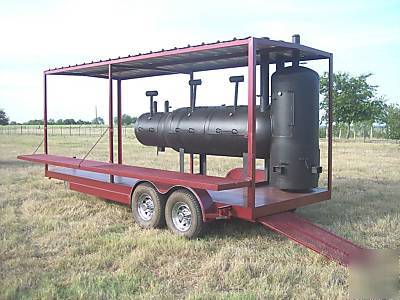

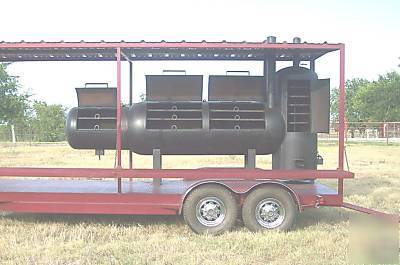

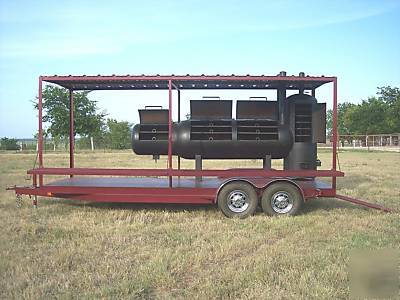

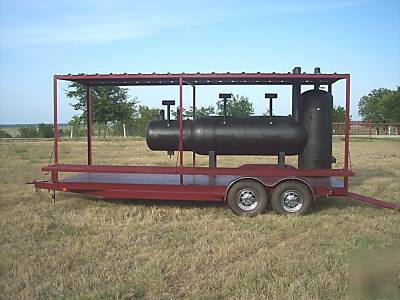

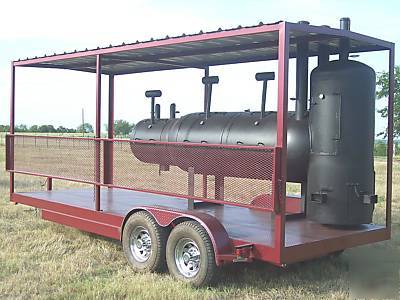

Brand new 80 wide by 20ft long tandem axle trailer with custom metallic maroon paint and diamond plate floor. The entire trailer is covered with a 7.5ft tall white R-panel roof and the left side of the trailer is a folding 2ft wide by 20ft long serving shelf. The back of the trailer also contains a hide-away ramp for easy access to the trailer bed. See photos. The Trailer itself is constructed with 6 C-channel, custom positioned 7000lb axles with Brakes, 7,000lb jack, 2 5/16 hitch, safety chains, breakaway kit, lights NEW 10-PLY TIRES, and your choice of either Silver or Chrome wheels. For Chrome wheels, lug nuts, and center caps, add $500. see pics for chrome vs. silver.
All in all this is a very efficient unit. The ENTIRE rig is constructed from steel. It will last a very long time and holds heat better than any I ve seen. The reverse flow system, smoker, front charcoal grill, counterweighted doors, and dual stacks at grate level, all make these pits one of a kind and a super flexible cooking unit. Premium Heavy-duty tandem trailer with diamond plate floor and wrapped tongue handle this pit nicely.
