> New jet 9" x 49" taper vertical milling machine 690180
New jet 9" x 49" taper vertical milling machine 690180

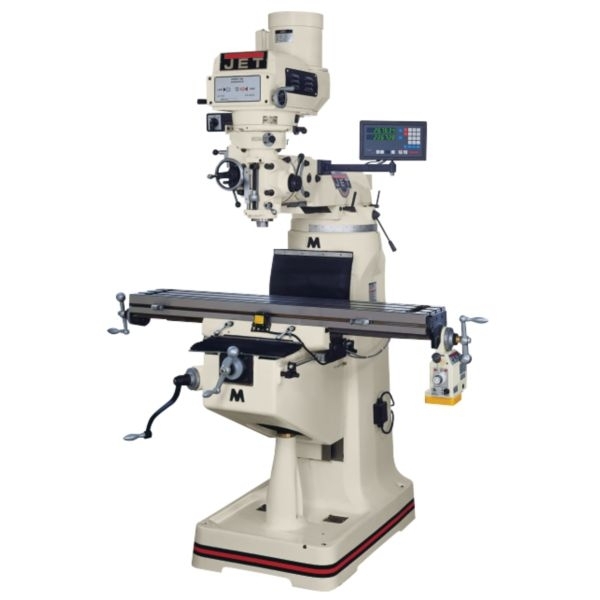

JET JTM-4VS-1, 9" X 49" 2 HP 1-Phase R-8 Taper Variable Speed Vertical Milling Machine
Motor 2 HP, 1 Ph 115/230V; Pre-wired 230V Overall Dimensions 65-1/2" x 63" x 85" (L x W x H) Net Weight 2,420 lbs. Spindle Taper R-8 Number Of Spindle Speeds Variable Range Of Spindle Speeds 60 - 4,200 RPM Down Feeds Of Spindle .0015 - .003 - .006 (per/rev./in.) Spindle Travel 5" Head Movement 90 Right & Left; 45 AP; 110 Forward & Back Distance Spindle To Table 17-1/2" Distance Spindle To Column 4-1/2" (Minimum) Distance Spindle To Column 19" (Maximum) Longitudinal Table Travel (X-axis) 34" Cross Travel (Y-axis) 12" Collet Capacity 1/8" - 7/8" T-Slots 3 T-Slots Size 5/8" Maximum Weight Of Work Piece 660 lbs. Travel Of Ram 14-1/2" Quill Diameter 3-3/8"
* 9" x 49" 2 HP 1-Phase R-8 Taper Variable Speed Vertical Milling Machine - 690180
