Tester for antistatic wrist strap led lights indicator

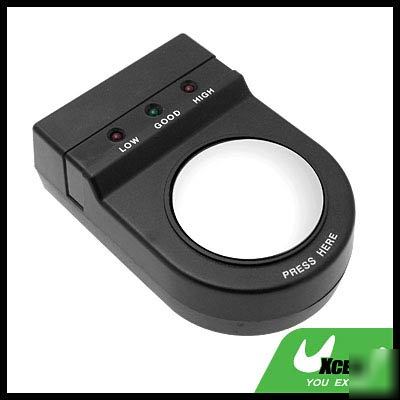

Tester for Antistatic Wrist Strap LED Lights Indicator
* Insert a 9V battery into the battery compartment at the rear of the unit
* Insert the banana clip for the grounding wire into the grounding wire jack at the top of the unit
* Attach the wrist strap so that it firmly contacts the wrist
* Connect the grounding wire to the wrist strap
* Press the test pad on the front of the unit An LED lamp and audible signal will be heard
* If the green"Good"lamp lights up, the grounding system is safe
* If the red "Low" lamp lights up, check the resistance of the wrist strap grounding wire as it may be lower than 800K ohm, which would have an influence on the human body
* If the red "High" lamp lights up, check the wrist strap to make sure it firmly contacts the wrist. Also check the resistance of the wrist strap grounding wire to make sure the grounding wire is not broken
