Kistler 9077B 3-component force sensor
PLEASE DO NOT ASK IF WE CAN MAKE AN EXCEPTION FOR YOU!
PLEASE READ AND UNDERSTAND THIS!

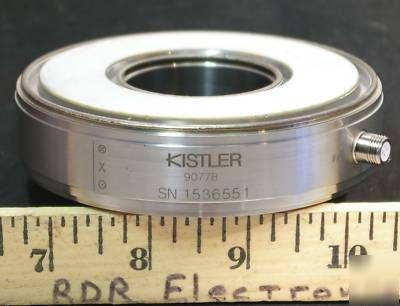

1 - Kistler 9077B 3-Component Force Sensor X, Y & Z
There are three different downloads available.
There is reference to a newer "C" version but the basics are the same.
For more detailed information we have provided these links for the 9077B.
Used condition. We're not able to test this unit.
There is a pin in the top most position of the connector, that is isolated,
that I'm assuming is for connector polarization.
There was a note on the unit that read:
"Low Insulation Resistance - Vendor Could Not Repair - Remove from Service."
I measured the resistance between each position on the connector and the case
and had no indication on a 100 Meg Ohm HP 34401A DMM.
This item is being sold with a 30-day warranty for basic functionality ONLY. It has NOT been calibrated recently.
