New edmund optics c-mount first surface mirror mounted

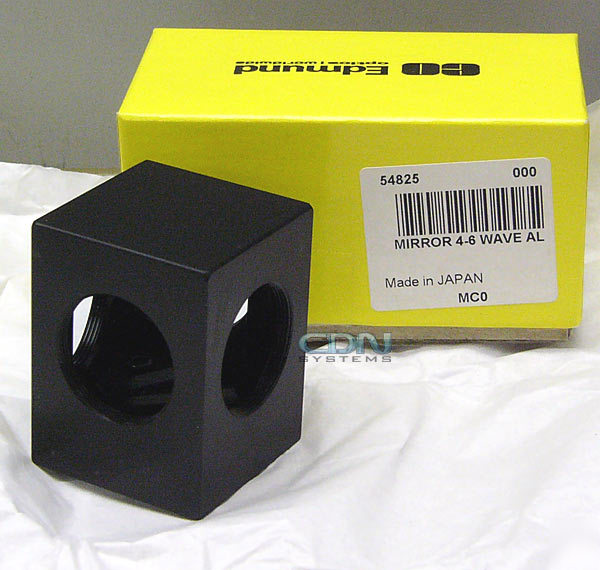

NEW Edmund Optics C-Mount First Surface Mirror Mounted
* Surface Accuracy: 4-6 /inch
* Edge: Ground, 0.5mm Maximum Edge Chip
* Coating: Protected Aluminum
Beamsplitters are commonly used for imaging applications which require the light path to be split. Typically, integration of these components is cumbersome. Thse components, however, mount easily into any optical system via four C-mount threaded holes. The housing is 50mm H x 38mm W x 38mm D with (4) 1-32 TPI female threaded apertures (straight thru-90 angle). It accommodates our TECHSPEC 35 x 35 x 3mm protected aluminum-coated first surface mirror. A threaded aperture lid is included to close the unused port. Base has a centered 1\4-20 tapped hole for post mounting. Mirror can be replaced with our standard 35 x 35m, first surface mirrors. Mount without optic also available (#56-265).
