Graco dispense kit 222079 w/ silver spray gun, series a
This Graco Dispense Kit, Part# 222079, is brand new and has never been out of its original box. I opened the box in order to take pictures of the contents for your convenience. This dispense kit is for Graco pumps 222077 and 226342. Instruction booklets are included for all parts.
RETAIL PRICE - $526.00; You get 25% off Retail!!

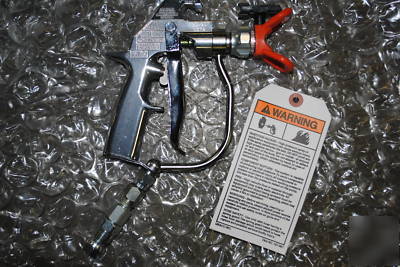

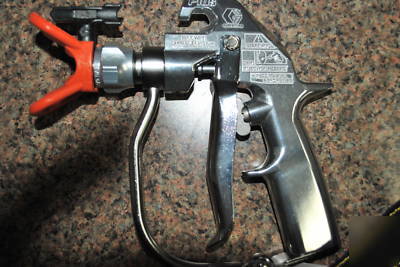

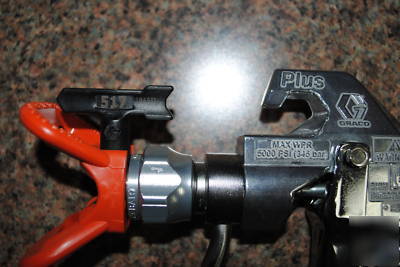

Pictures #1-3 show a Silver Spray Gun, Series A
Silver Spray Gun Specifications:
* Graco Part Number 234237
* Inlet: 1/4 npsm x 1/4 npt swivel517 RAC 5 V Switch Tip
* Maximum Working Pressure: 5000 psi (345 bar, 34.5 MPa)

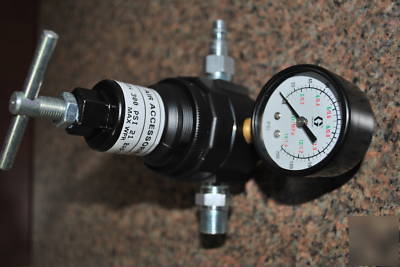

Picture #4 shows an Air Regulator
Air Regulator Specifications:
* Gauge 0-200 psi (0-14 bar)

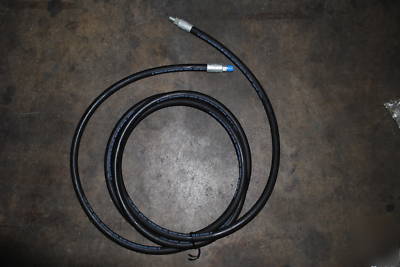

Picture #5 shows a 15 x 3/8 fluid hose, cpld, Max wpr 4000 psi (276 bar) Graco Part Number 109165
Picture #6 shows the following:
* 100940 Elbow, street; 1/4 npt
* 104984 Tee, pipe; 1/4 npt
* 155570 Union, swivel; 1/4 npsm (f) x 1/4 npt (f)
* 210657 Ball Valve, Series B, Max wpr 5000 psi (35 MPa, 350 bar)
* 239663 Swivel, Max wpr 3600 psi (25 MPa, 250 bar)
* 286319 319 Rac 5 Switch Tip
