> Fast-settling fet-input instrumentation amplifier 3PCS.

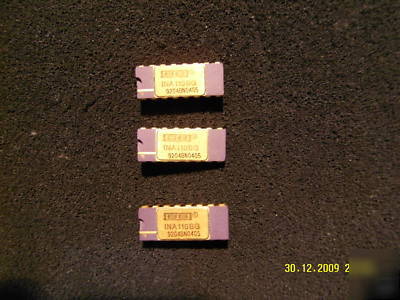

Fast-settling fet-input instrumentation amplifier 3PCS.
The INA110 is a versatile monolithic FET-input
topology and laser trimmed input stage provide
excellent dynamic performance and accuracy. The
ms to 0.01%, making it ideal for
high speed or multiplexed-input data acquisition
Internal gain-set resistors are provided for gains of 1,
10, 100, 200, and 500V/V. Inputs are protected for
differential and common-mode voltages up to
Its very high input impedance and low input bias
current make the INA110 ideal for applications
requiring input filters or input protection circuitry.
The INA110 is available in 16-pin plastic and ceramic
DIPs, and in the SOL-16 surface-mount package.
Military, industrial and commercial temperature range
HIGH CMR: 106dB min; 90dB at 10kHz
INTERNAL GAINS: 1, 10, 100, 200, 500
VERY LOW GAIN DRIFT: 10 to 50ppm/ C
PINOUT SIMILAR TO AD524 AND AD624
FAST DIFFERENTIAL PULSE AMPLIFIER
AMPLIFICATION OF HIGH IMPEDANCE
For more information: http://www.datasheetcatalog.org/datasheets/150/255434_DS.pdf
