Ohmart vegapuls PULS53KEX.ud radar sensor rod antenna

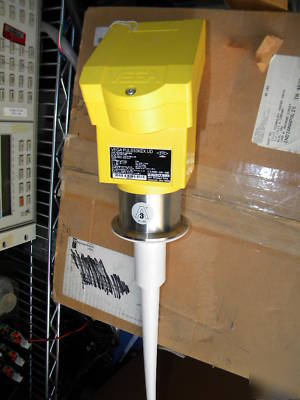

This listing is for a Ohmart Vegapuls PULS53KEX.UD Radar Sensor Rod Antenna

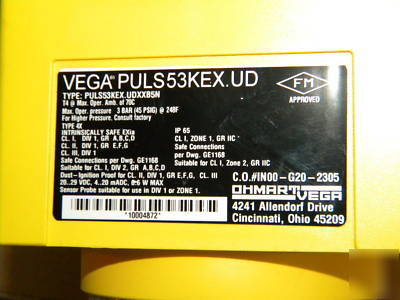

* Ohmart Vegapuls PULS53KEX.UD Radar Sensor Rod Antenna (PULS53KEX.UDXXB5N)
* Be sure to look at my other listings for other sensors and a Mettler Toledo Thornton 770 MAX Analyzer (Listings)
* K Compact instrument with analogue current output

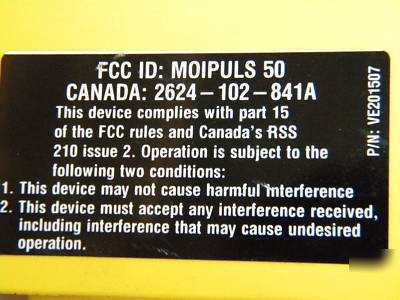

* EX.U FM Div.I, CSA, FCC (US-telecom. approval)
* D Two-wire-Loop powered / 4-20mA HART
* Adjustment module MINICOM (pluggable)
* B - 20 72 V DC; 20 250 V AC; 4 20 mA, HART (four-wire)
* 5 - Socket length up to 50 mm, rod antenna of PP

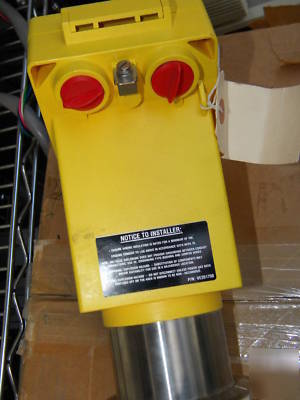

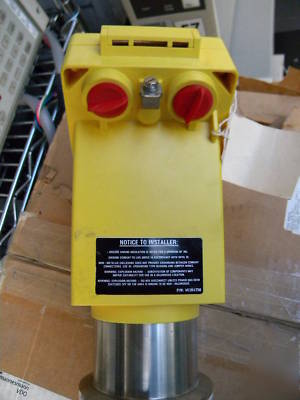

* N Plastic housing PBT, 1/2 NPT cable entry
Radar sensor for continuous level measurement of liquids in storage tanks, 6.3 GHz technology
VEGAPULS series 50 sensors are a newly developed generation of very compact, small radar sensors. With modest space requirements, they were developed for short measuring distances of 0 20 m and for standard applications such as storage tanks and buffer tanks, but also for process vessels. Due to their small housing dimensions and process connections, the compact sensors do your level monitoring inconspicuously, and above all, at reasonable cost. With their integrated display and remarkable intelligence, they bring the advantages of radar level measurement to applications where previously, due to high cost, the advantages of non-contact measurement had to be foregone. VEGAPULS 50 radar sensors utilise two-wire technology perfectly. The supply voltage and the output signal are transmitted via one twowire cable. They provide an analogue 4 20 mA output signal as output or measuring signal.
for echo analysis with Fuzzy-Logic. Adjustment via VEGACONNECT and/or PC, detachable adjustment module or HART version via HART handheld on 4 20 mA.
- Two-wire loop-powered compact sensor, also for use in Ex area, for connection to a power supply unit.
- Four-wire compact sensor with separate power supply and current output, also for use in Ex area.
- Sensor with digital signal transmission for connection to Profibus PA, also for use in Ex area.
* Housing of plastic PBT or Aluminium (powder-coated)
* Process connection: flange with PTFE coating

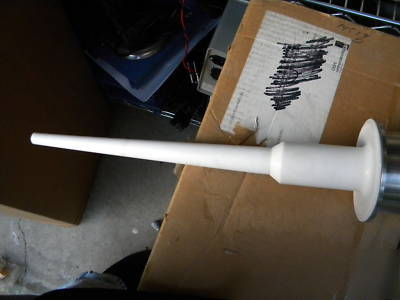

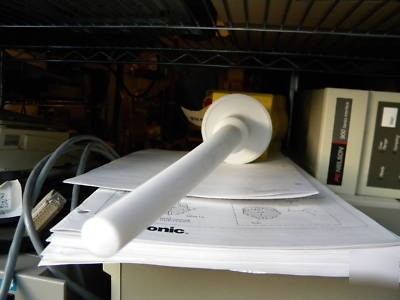

* Antenna system: rod antenna PTFE
* Process temperature: -40 C +150 C
* Vessel pressure: max. 16 bar
* Instruction Manual on the Ohmart Vega site
* Data Sheet for the Vegapuls 53 Sensor
