Nib honeywell T675A1508 remote bulb tempature controller

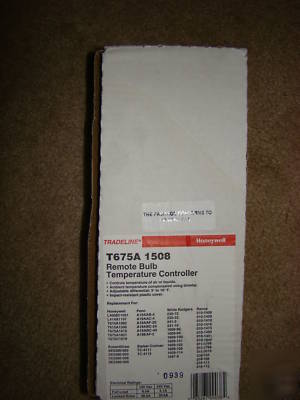

honeywell T675A 1508 remote bulb tempature controller new in box
HONEYWELL T675A1508 Remote bulb Commercial Temperature Controller, 0 F to 100 F, 5 ft. capillary, Copper bulb sensing element
Remote bulb thermostats regulate temperature of air or liquids in ducts, pipes, tanks and boilers.
Normal stock at manufacturer warehouse
* IMAGE IS REPRESENTATIVE ONLY
Suitable for applications requiring temperature control of air or liquids where controller must be placed outside the sensing area.
Typical uses include control of dampers and valves in heating, cooling and heating-cooling systems.
Fast response models (available for use in return air duct) operate approximately four times faster than standard models.
Controller can be mounted in any position.
Ambient temperature compensation provides good temperature control.
Refer to T775 Electronic Remote Temperature Controller where more exact control is required and/or remote controller location is preferred.
T675A models with fixed differential have an electrical rating of 125 VA at 120/208/240 and 277 Vac.
T675B models have 125 VA pilot duty up to 277 Vac.
T678 models have a maximum connected load of 2000 VA.
Application Regulates temperature of air or liquids in ducts, pipes, tanks and boilers
Voltage 120 Vac or 240/277 Vac
Contact Ratings (120 Vac) 8.0 AFL, 48.0 ALR
Contact Ratings (240 Vac) 5.1 AFL, 30.6 ALR
Contact Ratings (277 Vac) 4.2 AFL, 25.2 ALR
Dimensions (in.) 5 5/8 in. high x 2 in. wide x 2 5/8 in. deep
Dimensions (mm) 143 mm high x 51 mm wide x 67 mm deep
Bulb Size (in.) 1/2 in. x 4 3/16 in.
Bulb Size (mm) 13 mm dia. x 106 mm long
Setpoint Temperature Range (F) 0 F to 100 F
Setpoint Temperature Range (C) -18 C to +38 C
Maximum Operating Temperature (F) 125 F
Maximum Operating Temperature (C) 52 C
Differential Temperature (F) 3 F to 10 F
Differential Temperature (C) 1.7 C to 5.6 C
Includes 107324A Duct Bulb holder
Comments Includes 107324A Duct Bulb Holder
Approvals, Underwriters Laboratories Inc UL Listed: E4436, Vol. 4, Sec. 11, Guide XAPX
Approvals, Canadian Standards Association CSA Listed: Report -1
