> New 10 bowmalloy high strength bolts 7/8 x 2.5" grade 8

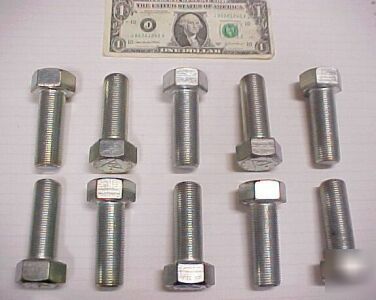

New 10 bowmalloy high strength bolts 7/8 x 2.5" grade 8
This item was acquired at an industrial sale recently, and they are brand new in the original distributor's boxes. If you need the ultimate in tensile strength for really demanding applications, this is probably it. These should be just the thing for mounting pintle hitches, tractor drawbars, overhead cranes and hoists, or other uses where bolt failure could be a major disaster.
Head width (across flats): 1.303"
Head width (across corners): 1.495"
Threads: 7/8-14 x 2-1/2" (diameter x threads per inch x length)
- Proprietary Medium Carbon, Through-Hardened Alloy Steel, Quenched & Tempered
- 180,000 PSI Min. - 200,000 PSI Max. Tensile Strength
- Cap Screw Rockwell Hardness Min./Max: C38 / C42
- 20% Higher Head than Standard Hex Head Cap Screws
