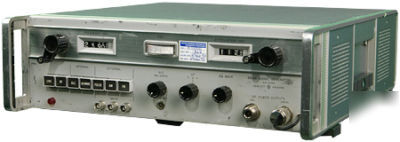

Hewlett packard 8614A signal generator, 0.8 to 2.4GHZ
Hewlett Packard 8614A Signal Generator
The HP/Agilent 8614A Signal Generator provides stable, accurate signals from 800 to 2400MHz with selectable functions including CW, leveled output, square-wave modulation, and external AM, FM, and pulse modulation.
RF output power of +10 dBm to -127 dBm into a 50-ohm load is available plus a second uncalibrated output (approx. -3 dBm) is provided on front-panel. Both frequency and attenuation are set on direct-reading digital dials offering simple setup and operator convenience.
