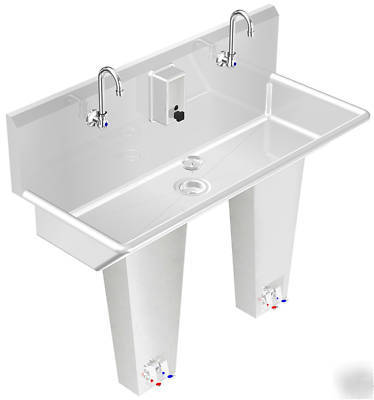

Hand sink, 2 person multi station 40" with pedal valve

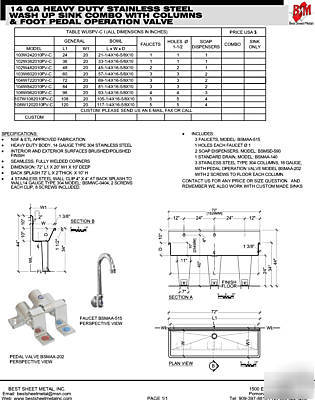

WASH-UP HAND SINK 2 STATIONS WITH PEDAL VALVE 40", FLOOR MOUNT
Available: 1 station or single station, 2 station, 3 station, 4 station, 5 station multi station
Dimensions: 40 L x 20 W x 10 Deep
Back Splash Dimensions: 40 L x 2 Thick x 10"H

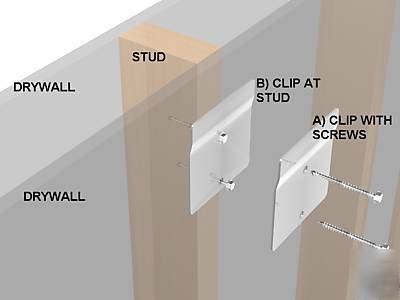

2 S/S #304 Wall clip 4 x 4 at back splash to wall 14 gauge Model: BSMWC-0404
4 Standard screws 2-1/2" for clip and legs installation Model: BSMSL-2815/8C

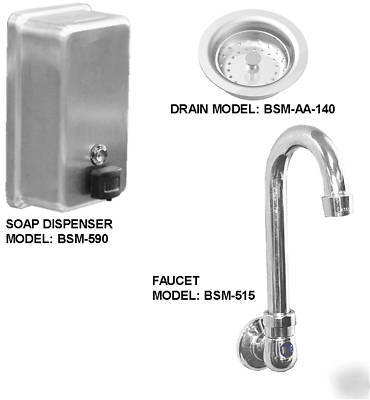

(Available extra soap dispenser)
1 Standard Drain Model: BSMAA-140
1 hole each faucet diameter 1
2 stainless steel #304 16 gauge, columns 24 height with 2 screws
to floor and 4 screws valve to bracket each column.
2 Pedal valve operation model BSMAA-202 with
