Nib colortft maternal/fetal monitor fhr+SPO2+pr+ecg+ p

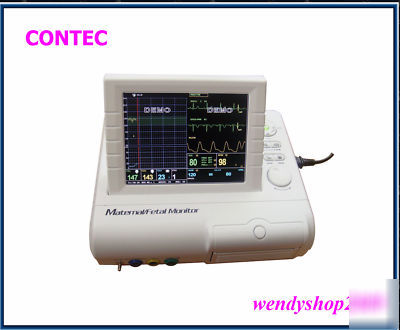

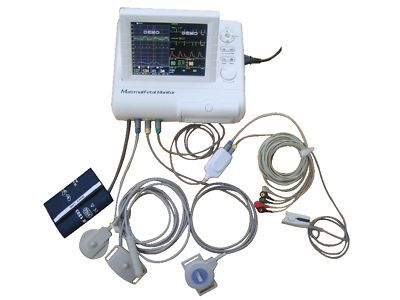

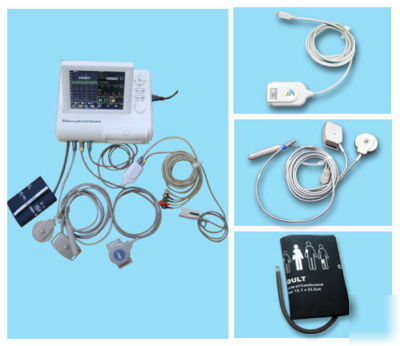

Maternal /Fetal Patient Monitor (FHR,TOCO,ECG,NIBP,SPO2)
Single or Twins Ultrasound transducer
Data Graph and Trend Table Review of both mother and fetal
Built-in Network capability for connect with central monitoring software
All the colors and looks or the parameters can be customized
Multi-face views, select focus on mother or fetal
Storage of patient information and data
Display Mode: Standard View, Fetal View, Mother View
Indicator: Power indicator light, Alarm sound
Interface: Socket for connecting fetal's FHR, TOCO, and Fetal Movement sensor Socket for connecting mother's ECG, NIBP and SPO2 sensor.Net Socket (RJ45) for communication cable with Central Monitoring Station Software.
Power Supply: AC 100 ~ 240V, 50/60Hz, Powe < 60VA
Trend Graph: Resolution from 1s, 5s, 10s. Maximum time 96 hours.
Trend Table: Resolution from 1s, 5s, 10s. Review up to 1000 items.
Alarm: Adjustable High and Low limits. Three level audible and visual alarm.
User Configuration: All the color of parameters and waves can be set according to user's willing.
Safety: Meet the requirement of IEC60601 series
Type of Protection: Class II with internal electric power supply
Dimention:92(W)x82(H)x22(D)mm
Patient Range: Pregnant Adult
Accuracy: 2%(70%~100%, Adult/Pediatric, non-motion)
3%(70%~100%, Neonate, non- motion)
Measurement Range: 25 ~ 250 bpm
Accuracy: 3 bpm (non-motion)
Lead selection: I, II, III, AVR, AVL, AVF, V
Accuracy: 2bpm or 2%, which is greater
S-T segment detection range: -2.0mv ~ +2.0mv
Arrhythmia analysis: 13 kinds of arrhythmia
Mode: Manual/Auto/Continuous
Measurement Range: 25 ~ 260mmHg
Auto Measure Interval: 5, 10, 15, 30, 45, 60, 90 minutes
Overpressure Protection: 300mmHg
