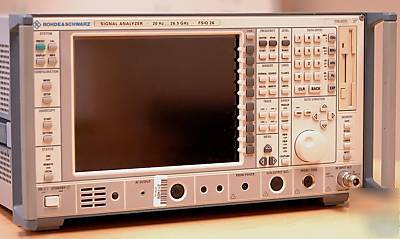

Rohde & schwarz fsiq 26 vector signal analyzer 26.5 ghz
* With options B4 (Low Phase Noise), B5 (FFT Bandwidth, 1 Hz - 1 kHz), B7 (Vector Signal Analysis), and B13 (RF Attenuator 1dB)
* RBW of 1 Hz to 10 MHz in 1/2/3/5 steps
* 5-pole resolution filters with high selectivity
* FFT filter with 1 Hz to 1 kHz RBW for fast measurements
* Displayed average noise floor of -150 dBm typ., in 10 Hz bandwidth
* Third order intercept +22 dBm o Phase noise of -150 dBc (1/Hz) at 5 MHz offset
* Ultrawide dynamic range of 75 db ACPR for WCDMA (4.096 MHz integration BW)
* 82 dB ACPR in alternate channel for WCDMA
* Total level uncertainty <1dB up to 2.2 GHz, <1.5 dB up to 7 GHz
* True RMS detector for high-precision power measurements irrespective of waveform o Fast time domain analysis with 1 s zero span sweep time
* Integrated broadband vector signal analyzer for all main mobile radio standards and modulation modes with versatile result display. I and Q signal, magnitude and phase, vector and constellation diagrams, spread sheets with numeric evaluation of modulation errors and demodulated bit sequence
