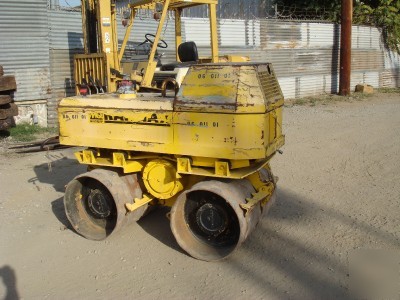

Rammax P33 / 24HMR compactor, year 2000, 18 hrs
About Rammax P33/24 HMR (Description taken from manufacturer's website)
Built-in sensors monitor soil density and inform
the operator when it is attained. The patented
Compaction Expert system automatically adjusts
compaction force to soil conditions, enabling the
operator to obtain optimum results.
n Excellent machine for training new
n Light display provides visual indication of
Operating Weight - lbs (kg) 3263 (1480)
Overall Length - in (mm) 80 (2020)
Overall Width - in (mm) 33; 24 (850; 630)
Overall Height - in (mm) 48 (1220)
Drum Width - in (mm) 33; 24 (850; 630)
Drum Diamater - in (mm) 21.7 (550)
Amplitude - in (mm) 0.087 (22)
Centrifugal Force - lb (kg) 18,500 (8391)
Vibrations Per Minute - VPM (hz) 1,800 (30)
Dynamic Linear Force Per Drum -lb/in (kg/cm) 24"-364(650); 33"-269(480)
Hydraulic Oil Tank Capacity - gal (l) 15.9 (60)
Engine Power - HP (kW)* 18.5 (13.8)
Diesel Fuel Tank Capacity - gal (l) 5.9 (22)
Travel Speed High - ft/min (m/min) 0-115 (0-35)
Travel Speed Low - ft/min (m/min) 0-52 (0-16)
Gradability w-w/o Vibration - % 45/55
Manual Control Levers Standard
