New professional 200KHZ benchtop lcr/lcz meter,bridge

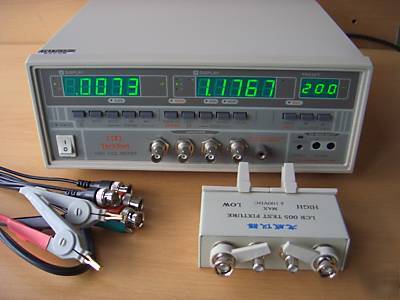

"Professional / High Precision 200KHz Benchtop Digital LCR Bridge Meter"
HIGH RELIABILITY & STABILITY WITH WIDE MEASUREMENT RANGE !!!
. Wide Measurement : Capacitance / Inductance / Impedance / D Factor / Q Factor / Rs (ESR) /Rp/ Phase Angle:
- Capacitance : 0.0000pF to 199.99mF;
- Inductance : 0.0000uH to 1999.9H;
- Impedance: 0.0000 to 199.99M ohm;
- Resistance (ESR) : 0.0000mOhm to 19,999KOhms;
- Dissipation factor ( D ) : 0.0000 to 19999;
- Quality Factor (Q ) : 0.0000 to 19999;
- Phase Angle: -180 to 179.99 degree;
. Measurement Frequency: 40Hz to 200KHz, 30 points for selection;
. Measurement voltage: 20mV, to 1.0Vrms, steps 20mV;
. Equivalent circuit: series, parallel;
. Slow / medium measurement rate;
. Zero calibration: Open, short;
. DC bias voltage: External, upto 35Vdc;
.Test Frequency: 40HZ to 200KHZ ,30 points for selection
40,50,60,100,120,200,400,800HZ,1K,2K,5K,10K,
15K,15.7K,16K,20K,22.2K,25K,30K,40K,50K,60K,
66.6K,75K,80KHZ,100K,120K,150K,160K,200K
.Display: 4 1/2 digits for LCZ ,Q & D measurement . 3 digits display for measurement frequency and signal level;
- Resistance (ESR): 0.0000mOhm to 19,999KOhms;
. Overall accuracy : 0.1 % (1KHZ);
. Test signal level : 20mv to 1 Vrms, step 20mv;
. Measurement rate: Slow ,medium;
. Equivalent Circuit: Series or parallel;
. Zero calibration : open, short;
. DC bias Voltage : external ,up to 35Vdc;
. Size / weight: app. 270(w) x 110(H) X 340(D) mm / 5.5kg;
. Accessories:English Operation Manual / Power Cord / 4 Ports test fixture / 4 Wire Kelvin clip test lead
