2000 haas sl-30 cnc lathe w/programmable tailstock

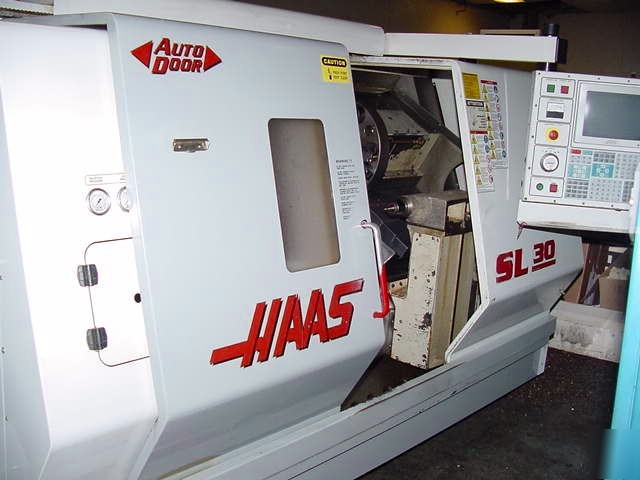

2000 HAAS SL-30 CNC LATHE w/PROGRAMMABLE TAILSTOCK
SWING OVER FRONT APRON................. 30"
SWING OVER CROSS SLIDE................. 14.5"
CHUCK SIZE............................. 10" 3-JAW
SPINDLE BORE........................... 3.5"
DRAW TUBE BORE......................... 3.03"
MAXIMUM CUTING DIAMETER................ 17"
MAXIMUM CUTTING LENGTH................. 34"
MAXIMUM SPEED.......................... 3,400 RPM
SPINDLE MOTOR.......................... 30 HP
X-AXIS TRAVEL.......................... 11.3"
Z-AXIS TRAVEL.......................... 34"
TURRET (VDI)........................... 12 POSITIONS
APPROXIMATE MACHINE WEIGHT............. 16,000 LBS
APPROX. FLOOR SPACE.................... 150"L, 77"FB, 74"H
* HAAS CNC CONTROL, INCLUDING VALUE PACKAGE "A" (QUICK CODE,
FLOPPY DRIVE, 1 MB MEMORY, BAR FEED INTERFACE, SPINDLE ORIENTATION)
* PROGRAMMABLE HYDRAULIC TAILSTOCK
* 12 STATION VDI TURRET WITH MISC. TOOLING
