Applied motion products model 2035 stepper motor drive
Applied Motion Products Model 2035-O Stepper Motor Driver and Controller
For general information, data sheet and user manual, please visit the Applied Motion Products Inc. website:
http:// /products/stepper/drives/2035.php
I also have the exact user manual for this industrial version, please email me for a pdf copy.

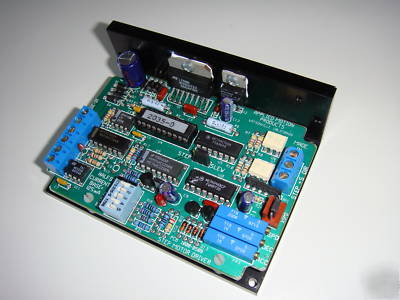

This is an Applied Motion Products Model 2035-O Step Motor Driver and Controller. Full industrial version complete with built-in oscillator and control circuits.
DC bus voltage 12-35 VDC motor supply (including ripple)
Switch selectable motor current from 0.125 2.0 amps/phase
Switch selectable full or half step
Switch selectable idle current reduction, 0 or 50%
Optically isolated 5-24 VDC inputs for step, direction and enable
Enable input to turn off current to the motor
Dual H-bridge, inaudible PWM amplifier
3 state, pulse width modulated current control, switching at 20-30 KHz
Drives 4, 6 or 8 lead step motors
The 2035-O step motor driver is a full or half step drive, step phase sequencer with three state switching amplifiers and optoisolated circuits. This drive has a built in ramping pulse generator (oscillator) with adjustable speed, acceleration and deceleration. Oscillator speed range is 0-5,000 Hz. Speed can be set from on-board trimpot or external pot.
A jumper allows you to select the internal oscillator. In oscillator mode, the pulse input becomes a run/stop signal: when this signal is set high, the motor accelerates to a preset speed and slews. Lowering the input signal causes the drive to decelerate to rest.
The amplifier regulates motor current by chopping at a constant, inaudible frequency. Phase current is selected from 16 levels by a DIP switch.
Reason for sale: End of project. I had 20 units in total, five were integrated in a system but the project was never used. The others were never used. They got mixed; hence I am selling what is left (8 units) of them all as used.
Free if collected in person from Warrington, Cheshire.
Policy: All units are checked, guaranteed to be working and I do not accept any returns.
