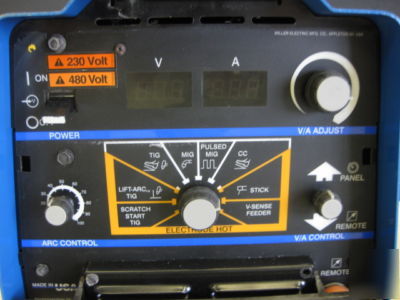

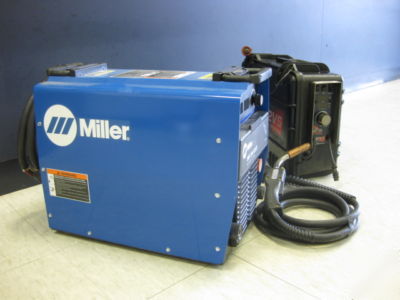

Miller xmt 304 cc/cv and 12VS feeder mig package


300 Amps Output at 32 Volts, 60% Duty Cycle
Lightweight, Compact, Portable
Excellent performance for most welding processes including pulse MIG and TIG with optional Optima and Intellitig-4 controls. Runs on either 208-230/460 Volt.
Rated CC Output: 300 A at 32 VDC, 60% duty cycle,
225 A at 29 VDC, 60% duty cycle,
DC Voltage Range: 10 - 35 V Rated Three-Phase Input Current at 300 A, 32 VDC, 60% duty cycle: 30.5 amps at 230 V, 18.9 amps at 460 V, 15.2 amps at 575 V
Rated Single-Phase Input Current at 225 A, 29 VDC, 60% duty cycle: 47.4 amps at 230 V Weight: 76 lb (34.5 kg)
Dimensions: H: 17" (432 mm) W: 12.5" (318 mm)
This Used XMT 304 has been tested, calibrated, and includes a 30 day warranty.

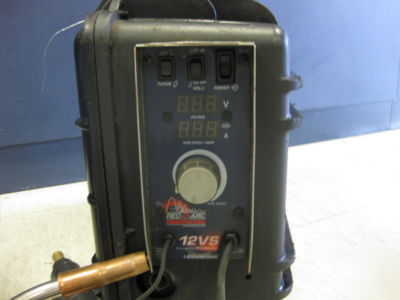

Used 12VS Extreme Feeder Details
12VS Extreme Wirefeeder - Specifications
This used 12VS Extreme Feeder as been tested, calibrated, and includes a 30 day warranty.

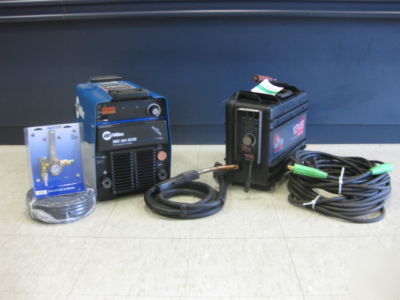

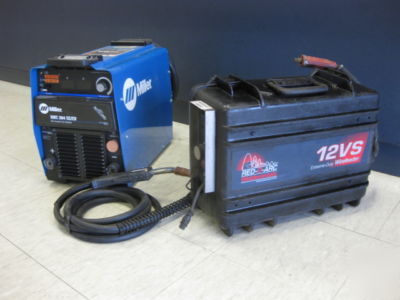

This is a complete package that includes the following: XMT 304 Power Source, 12 VS Extreme Feeder, 50FT of cable, Gas Hose, and Flowmeter. All you need to weld is to add gas and wire.
Please email with any questions. Limited quantities available.
