2-branch brass deluxe pex manifold for radiant heating

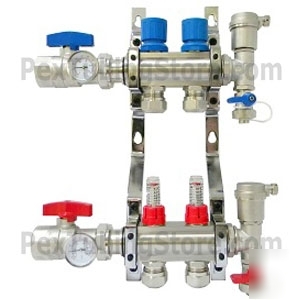

2-branch Brass Manifold Set for Radiant Heating
Pex Tubing StorePex Tubing StorePex Tubing Store BSM002
2-branch Deluxe Radiant Manifold Set. Made from brass. Nickel plated finish.
We guarantee the best quality + price deal!
If you have PEX tubing size other than 1/2" (such as 3/8", 5/8" or 1/2" PEX-Al-PEX) - contact us, and we'll include the adapters you need with the manifold at no extra charge.
The following is included in every set:
(1) Supply side radiant manifold w/ (2) adjustable flow indicators and (2) outlets for PEX tubing.
(1) Return side radiant manifold w/ (2) balancing valves and (2) outlets for PEX tubing.
(2) 1" threaded shut-off ball valves (1/4-turn) - one for each manifold (blue handle for return manifold and red handle for supply).
(2) Temperature gauges on both manifolds to monitor supply and return water temperatures.
(2) Float-type air vents to eliminate air from the system - both on supply and return side (air vent caps included for pressure testing purposes).
(2) Drain/fill valves with 3/4" garden hose (drain hose) connection and a cap.
(4) Compression adapters for 1/2" PEX tubing (no PEX tools required to connect tubing to the manifold).
This set does not come pre-assembled.
Technical specifications & compatibility:
* Total number of PEX outlets: 4;
* Distance OC (On Center) between PEX outlets: 2";
* Overall height when installed: 14.5"
* Overall width when installed (with shut-off valves): 10.75"
* Distance between supply and return manifolds: 8.25" OC.
* Compatible with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn, Everhot, Nibco, etc.)
To pressure test the radiant heat manifolds, use a Pressure Test Kit (SKU# TESTKIT).
