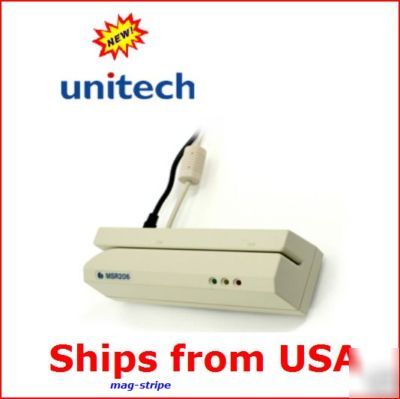

MSR206 magnetic credit card reader writer msr 206U usb
MSR206 Magnetic Stripe Card Reader / Writer USB http:// .ph/product_images/f/msr206__93231.jpgKeywords: MSR206-3HLR, MSR206-33, MSR-206, MSR206-USB, msr206u
Magnetic Swipe Card Reader/Writer MSR206 is designed to offer a card reading/writing solution for ISO 7811/1~6 formats. It reads and writes up to 3 tracks of data, e.g. decoding/encoding and verifying up to 3 tracks of data simultaneously. Also, MSR206 Reader/Writer provides a standard interface to communicate with host system or other terminal computers. That will attractively complement an existing system.
MSR206USB has Original Manufacturer USB cable (Not an adapter)
Reading/Writing magnetic stripe card complied with ISO 7811/1~6 formats
Read Low & High Coercive force of magnetic stripe (300~4000Oe)
Low Coercivity encoding circuitry selectable on screen
Writing and then verifying data on single, dual, or triple track in one swipe
Program software for Windows 98/Me/XP
Programming software for various read/write performance
Manual Swipe to read or write card with output
Programmable leading bit, raw data, DMV/AAMVA, and user defined format
5~35ips operational swipe speed of writing data
5~55ips operational swipe speed of reading data
+24VDC+/-10%, 2.0A Max., external power adapter attached
Good size with dimensions of 210(L) x 60(W) x 65(H) mm
CE, FCC, UL, cUL certified Reading/Writing magnetic stripe card complied with ISO 7811/1~6 formats
Read/Write High & Low Coercive force of magnetic stripe (300~4000Oe)
High/Low Coercivity encoding circuitry selectable on screen
Programmable leading bit, raw data, DMV/AAMVA, and user defined forma
Manual Swipe to read and/or write card with output
Writing and verifying data on single, dual, or triple track in one swipe
CE, FCC, UL, cUL certified
Read/write 300-4000 oe Mag.card
Interval < +/- 10%, Sub-interval < +/- 12%
Min. 1000K swipes for both read/write head
Typical 350mA Max. 600mA plus for each writing track
External switching power 24V/2.2A
