11" Swing 18" Centers Sharp 1118H Hardinge HLV-H Copy ENGINE LATHE, Base Machine
SHARP MODEL: 1118H PRECISION LATHE
EQUIPPED WITH DIGITAL VARIABLE SPEED (DVS) HEADSTOCK
w/NEW FEATURE - PRESET DVS HI-LOW RATIO
Swing over bed........................... 11"
Swing over carriage...................... 9"
Swing over cross slide................... 6"
Distance between centers................. 18"
With round 5C collets.................... 1-1/16"
With hexagon 5C collets.................. 7/8"
With square 5C collets................... 3/4"
With expanding chucks.................... 3"
With step chucks......................... 1 1/16-6"
With jaw chucks.......................... 5"
Spindle speed range (inf. variable DVS): 130-4,000 rpm
Spindle nose taper (inside): 5C (10 )
Spindle nose taper (outside): 4
Cross slide travel...................... 6"
Compound slide travel................... 3"
Quick-action compound slide travel...... 0.1"
Carriage power feed range............... 5/16-7"
Cross slide power feed range............ 4/16-4"
Leadscrew pitch, diameter............... 8 tpi, 1"
Inch threads (36)....................... 11-108
Metric threads (36)..................... 0.275 - 2.7
Tailstock spindle diameter.............. 1.358"
Tailstock spindle taper................. MT #2
Tailstock spindle travel................ 3.75"
Main motor.............................. 5 hp
Coolant pump motor...................... 0.25 hp
Feed motor (DC)......................... 75 watt, 110 volt
Weight (approx)......................... 2,300 lbs

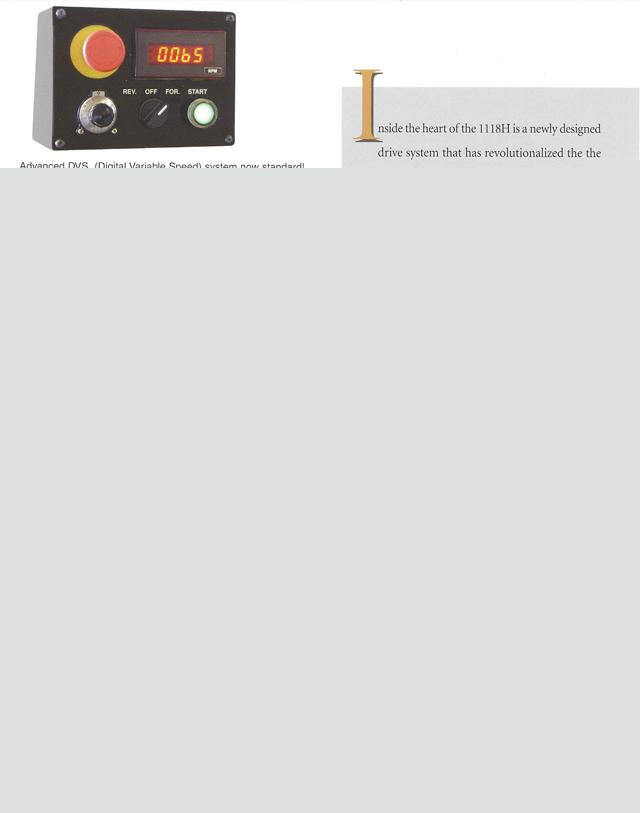

Digital Variable Speed (DVS) - Super quiet and vibration
High-speed spindle (infinitely variable 130-4,000 rpm),
accuracy within 50 millionths TIR
Independent electric feed control on carriage and cross slide
Quick-change inch/metric gearbox with 36 changes
Double angular contact bearings support spindle
Quick-action compound slide for threading
Hardened and ground bed ways; turcite coating on carriage
Adjustable thread length control stops with fine adjustment
Hardened and ground leadscrews
- 5C-COLLET CLOSER AND COLLET HOLDER
* WIRED 220V, SINGLE PHASE or 3 PHASE
(440V REQUIRES OPTIONAL TRANSFORMER)
THE FOLLOWING OPTIONAL ACCESSORIES ARE AVAILABLE AT
ADDITIONAL COST - CALL FOR PRICING:
- 3-JAW 6" CHUCK WITH 6" FIXTURE PLATE
- 4-JAW 6" CHUCK WITH 6" FIXTURE PLATE
- 5C COLLET SET (1/8" TO 1-1/16" BY 1/16")
- QUICK CHANGE TOOL HOLDER SET (KDK)
- 6 POSITION TURRET ATTACHMENT (MUST BE ORDERED WITH MACHINE)
- LIVE CENTER -ROYAL (DUAL BEARING) MT#2
- DRILL CHUCK - JACOBS WITH ARBOR (0-1/2") MT#2
OPTIONAL DIGITAL READOUT SYSTEMS:
- ACU-RITE 200T D.R.O. (0.00005" / 0.0001" Resolution)
- SONY LATHEMAN D.R.O. (0.00002" Resolution)
* * * SPECIAL PACKAGE PROMOTION * * *
STANDARD EQUIPMENT: 5C collet Closer, Drive Plate,
Headstock Cente, Drive Dog, Drive Gear, 5a Fuse, Toolbox,
5a Bridge Rectifier, Tool Setting Gauge.
PLUS PACKAGE ACCESSORIES: Splash guard, Lead Screw Cover,
3-Jaw 6" Chuck with Fixture Plate, Acu-Rite T-200 D.R.O.
Installed, Leadscrew Cover, 5C Collet Set ....... $22,300
