20 ton demott cnc stretch-wrap forming machine

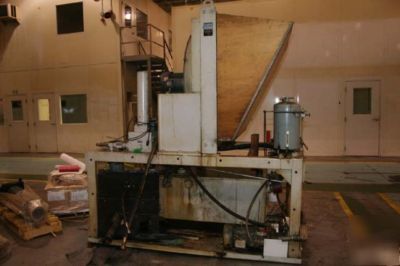

ONE Preowned DEMOTT CNC Stretch-Wrap Forming Machine
FORMING CAPACITY (AXIAL TENSION) .. 20 TONS NOMINAL
DISTANCE BETWEEN JAWS ... 44 JAWS EXTENDED
TENSION CYLINDER PULL .. 20 TON MAXIMUM TO
1 TON MINIMUM (INFINITELY ADJUSTABLE)
TENSION CYLINDER EXTEND SPEED .. 0.5 /SEC AVERAGE OVER 12 SEC FORMING CYCLE
TENSION CYLINDER ROTATION ABOUT AXIS - 0 - + 45 DEGREES
TENSION CYLINDER ELEVATION SPEED . 1.0 /SEC OVER 12 SEC FORMING CYCLE
JAW AXIAL ROTATION 135 DEGREES INCLUDED ANGLE
JAW ROTATION SPEED .. 11.25 DEGREES/SEC AVERAGE OVER 12 SEC FORMING CYCLE
JAW ROTATION RETURN SPEED 22.5 DEGREES/SEC AVERAGE OVER 6 SEC RETURN CYCLE
JAW OPENING (MAXIMUM WITHOUT TOOLING) . 8
SWING ARM WRAP ANGLE ... -5 DEGREES TO +60 DEGREES (EACH ARM INDEPENDENT)
SWING ARM FORMING SPEED . 0.1 DEGREES/SEC TO 5.0 DEGREES/SEC INFINITELY PROGRAMMABLE (EACH ARM INDEPENDENT)
SWING ARM RETURN SPEED 10.0 DEGREES PER SEC
CENTERLINE OF JAWS TO TOP OF TABLE BASED ON SELECTED JAW DESIGN AND MAXIMUM PART HEIGHT 5
JAW CENTERLINE ELEVATION ABOVE FLOOR . 52 MAXIMUM
MANDREL STROKE (EACH SIDE) ... 60 PLUS DISTANCE EXTRUSION IS INSIDE JAW
MANDREL OUTSIDE DIAMETER .. 4 MAXIMUM
MANDREL EXTRACTION FORCE . 5 TONS WITH VARIABLE PRESSURE CONTROL
MOTOR DRIVE: *WIRED 440 VOLTS, 3 PHASE*

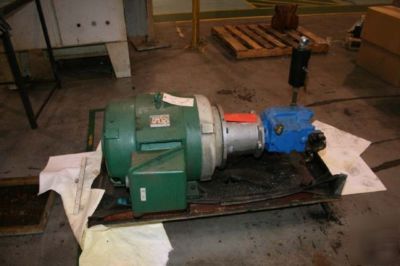

HYDRAULIC PUMP .. 75 HP 220/440 VOLTS
COMPLETE FACTORY SAFETY GUARDS
ALLEN BRADLEY 0S/2 VERSION 3.0 CNC CONTROLS
PRICE: ON SITE, (HOLLAND, OH) .... ... . $27,500.00
