Trailer plans BB10HD 10' hydraulic dump bed plans

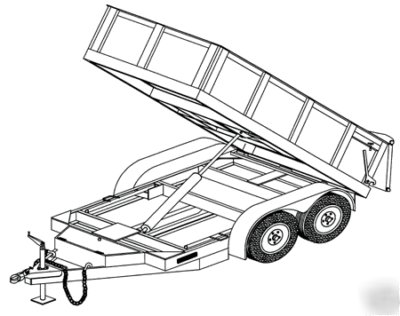

These plans are for a 10' Hydraulic Dump Bed Trailer Plans.
Upper Rim: Angle Steel and 14ga Metal Sheeting
Features: 2" ball coupler, top wind jack, tandem 3500lb axles w/ leaf spring suspension.
Hydraulic power package: 12 volt DC motor and a 2500psi pump, single 4"x30" cylinder. Hydraulic lift kits can be adapted to the trailer and dump bed.
