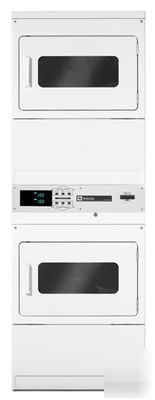

Maytag MLE24PRAYW single load stack dryer
MAYTAG MLE24PRAYW Single Load Super Capacity Stack Dryer, MICROPROCESSOR CARD READER READY, Glass Door, Extra Large 7.4 Cubic Foot Drying Capacity, Debit Card Compatible, Dual Coin Drop Option
Two pockets in the space of one. You can potentially double your dryer income and help eliminate waiting with two dryer pockets in the same floor space as one single-load dryer.
Large Window For Convenience
TurboVent Technology-Better Performance On Long Vents
Motor: Single-phase, thermoprotected against overload, auto-reset
Cu. ft. (liters) 7.4 (209.5)
Gas/Electric models: per pocket 230 (6.5)/215 (6.1)
Export, Gas/Electric models: per pocket 230 (6.5)/215 (6.1)
MDE model: voltage 240V/60Hz*
MDG model: voltage 120V/60Hz
Export models: voltage 220-240V/50 Hz
BREAKER/FUSE REQUIREMENTS (Amps)
Electric model: domestic (each drying chamber) 30
Electric model: export (one terminal block per stack) 40
Electric model: Canada (one terminal block per stack) 60
Gas models, all versions: (one power cord per stack) 15
Heater Element Rating: watts
Domestic model: per pocket 5,600
Export models: per pocket 4,600
MDG models, all versions: BTU/hr. (kcal/hr.) 24,000 (6,048)
Crated: lbs. (kg) 290 (131.5)
Uncrated: lbs. (kg) 265 (120.2)
Height: in. (mm) 76.75 (1949)
