Thermostatic control switch detroit switch inc.

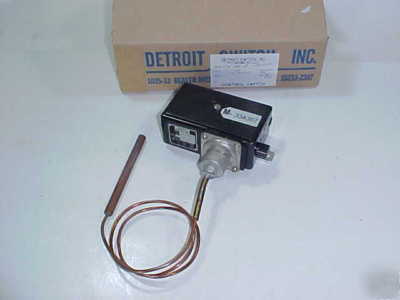

This is a new old stock thermostatic control switch. It was made by Detroit Switch Inc. Pittsburgh PA. The data plate reads; series: 7 01, unit: 2507935, range: 120-210f, 250 type: RL. The captube measured from the base of the switch to the end is 36 .
1hp, 115v, full load 16.0AC 9.4DC, locked rotor 96.0AC 94.0DC.
1hp, 230v, full load 8.0AC 4.7DC, locked rotor , 48.0AC, 47.0DC.
1hp, 440v, full load 4.0AC 2.5DC, locked rotor 24.0AC 25.0DC.
1hp, 550v, full load 3.2AC 2.0DC, locked rotor 19.2AC 20.0DC.
