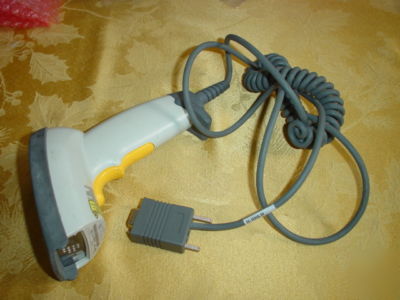

Symbol VS4004 model us 4004-1000 hand-held imager great
Hand-held Imager / Laser Barcode Scanner
http:// /profiles/symbolvision.htm
Symbol 4000 Series of hand-held imagers for reading all major bar code symbologies with the added capability of image capture. Based on the ergonomic design of the LS 4000 Series of hand-held scanners, the VS 4000 combines best in class performance with award winning ergonomics.
For existing 1D applications, the VS 4000 provides robust working range on 1D codes, such as 13 in./33 cm on 100% UPC, with the added benefit of omnidirectional scanning. More importantly, the VS 4000 delivers functionality to support the growing number of 2D applications
PDF417, Datamatrix, MaxiCode and Postal Code
The VS 4000 High Density version was designed to read DataMatrix codes as small as .005" (5 mil), while providing user-friendly working range on all other symbologies.
For image capture applications, the VS 4000 delivers clear VGA resolution images while providing the user total control over image attributes such as compression quality, transfer time, and file size. User-selectable imaging options also allow the choice of a variety of industry-standard image file types.
Comfortable and Intuitive to Use
The VS 4000 is ergonomically contoured, light and easy to use just what you have come to expect from Symbol! A bright laser generated pattern defines the imager's field of view, enabling point-and-shoot operation for bar code applications and intuitive aiming for image capture applications.
With an eye to the future, the VS 4000 is as easy to program, as it is to use. With flash programming capability, Symbol made it a snap to update and reconfigure the imager, even in the field. This protects your technology investment and provides an easy upgrade path for new codes and features.
* Reads popular matrix codes, PDF417, postal codes, and linear symbols
* Omni-directional reading on all symbologies
* Unrivalled working ranges on high density codes
* Captures clear VGA resolution images with fast file transfer
* JPEG, TIFF and BMP file formats are user selectable
* Distinctive, easy-to-use laser aiming pattern for intuitive operation
* Award winning ergonomics with patented two-finger trigger
* Advanced Data Formatting and parameter programming capabilities
* Flash memory for easy software upgrades in the field
* Synapse Smart Cable interface
6.3in/16 cm H x 5 in./12.7 cm L x 2.8 in./7.1 cm W
Standard: 7 in/17.8 cm from nose of scanner
High Density: 3 in/7.6 cm from nose of scanner
640x480 pixels x 256 shades of gray
+/- 50o from plane parallel to symbol (side-to-side)
25% (1D symbologies) or 35% (PDF417) absolute dark/light reflectance differential, measured at 650 nm
Sunlight: Up to 9,000ft-candles/96,890 lux
Withstands multiple 4ft/1.2m drops to concrete
+4.75 to 5.25V, 400 mA (Typical)
Low Power Mode Current: 1.5 ma
RS-232, Synapse Smart Cable interface, and Symbol Simple Serial Interface (SSI)
1D Symbology: UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 93, UCC/EAN, ISBT 128, Code 128, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Bookland EAN, UPC Coupon Code, MSI Plessey.
Postal Codes: U.S., Canada, UK, Japan, Holland
2D Symbology: MaxiCode, PDF417, DataMatrix (ECC 200)
Imaging Options (User Selectable):
Resolution: Full (640x480), , 1/3, image
Grayscale Level: 256, 16, 2, shades of gray
Cropping: Any rectangular region of the image
