> Nib 63" x 1/4" pullmax model #P21 bler 3 hp w/ tooling
Nib 63" x 1/4" pullmax model #P21 bler 3 hp w/ tooling

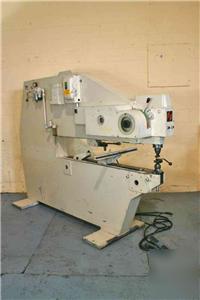

63" X 1/4" PULLMAX MODEL #P21 NIBBLER: STOCK #53311
SERIAL ................................... 58570-01
MODEL .................................... P21-SL
CAPACITIES @ ............................. 65K PSI TENSILE STRENGTH
CUTTING - START @ MATERIAL EDGE .......... 1/4"
CUTTING - START IN CENTER OF MATERIAL .... 3/16"
NIBBLING - START @ MATERIAL EDGE ......... 3/16"
NIBBLING - START IN CENTER OF MATERIAL ... 5/32"
JOGGLING & BEADING ....................... 10 GA.
DISHING .................................. 5/32"
LOUVERING & FLANGING ..................... 1/8"
PUNCHING ................................. 13 GA.
CIRCLE CUTTING DIAMETER RANGE ............ 5-5/16" TO 41-5/16"
MAXIMUM CUTTING SPEED .................... 40 FPM
CUTS PER MINUTE (VARIABLE) ............... 400 TO 4000
STROKE LENGTH (ADJUSTABLE) ............... .067" TO .276"
THROAT ................................... 63"
CIRCLE CUTTING ATTACHMENT ................ YES
STRAIGHT EDGE GUIDE ...................... YES
PNEUMATIC FOOT PEDAL ..................... YES
MAIN MOTOR ............................... 3 HORSEPOWER
