Epi fluorescence trinocular microscope + 3M fluo camera

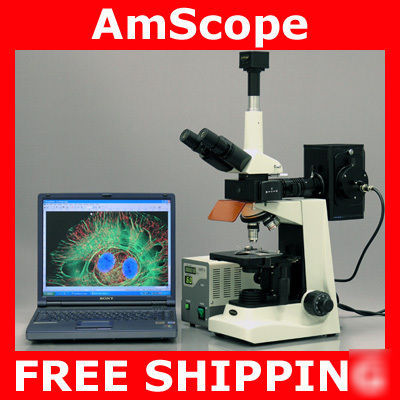

EPI FLUORESCENCE TRINOCULAR MICROSCOPE + 3M FLUO CAMERA
Brand Name: AmScope Model No: FM320-3M Retail Value: $9,800
* A Great EPI-Fluorescent and Transmitted Bright-Field Microscopy System with Fluorescent Digital Camera
* 3.0 Megapixel Low-Light, Low-Lux, True Color Digital Camera for Fluorescent Applications
* Capturing Fluorescence Microscope Images or Displaying Real-time Live Video on Your PC Screen
* Recording Live Video Images
* Saving Fluorescence Microscope Images in BMP, TIFF, JPG, PICT, PTL and Other Formats
* Editing Images as You Use Photoshop
* Conducting Measurement Across Images for Length, Angle, Area, and etc.
* Built-in Reduction Lens Giving Same Field of View Images on Your PC Screen as Those Seen Through Eyepieces
* Easy and Fast USB2.0 Connection, Installation and Operation
* Four High Quality Fluorescent Plan DIN Objectives: FLUOR 4X, 10X, 40X & 100X
* Four High Quality Achromatic Objectives: 4X, 10X, 40X & 100X
* 100W Fluorescent Light Source
* 100W HBO Ultra Hi-Voltage Spherical Mercury Lamp
* High Contrast EPI-Fluorescent Images
* Blue and Green Exciting Light and Ordinary Light Filter System
* Three-Position Fluorescent Filter Slider Assembly for Blue, Green, and Brightfield Microscopy
* 220V/110V (Interchangeable) External DIGITAL Power Supply (100W DC)
* Easy Control Design for Centering Arc of the Mercury Lamp
* Fluorescent Light Condenser with Moving-Control Knob
* Fluorescent Light Field Diaphragm with Centering Control Adjustment
* Three-Setting Fluorescence Excitation Light Path Control Dial: No Light, Partial Light, Full Light
* Ultraviolet-Light-Free Front Light Baffle
* Kohler Illumination System with Field Diaphragm for Lighting Control
* Dual Side Coaxial Coarse and Fine Focusing Control
* Four Plan Achromatic DIN Objectives
* Two Sets of Wide Field Eyepiece: Wide Field 10X (18mm Field of View) and P16X
* Abbe Condenser with Iris Diaphragm & Swing-in Color Filters
* Built-In Variable Halogen Illumination System with Intensity Control
* A Wide Range of Accessories Available Including Phase Contrast and Darkfield Condensers
* Wide Field Eyepiece: WF10X (18mm Field of View), P16X
* Fluorescence DIN Objectives: FLUOR 4X (0.10 NA), 10X (0.25 NA), 40X (0.65 NA, Spring) & 100X (1.25 NA, Spring, Oil)
* Achromatic DIN Objectives: 4X (0.1 NA), 10X (0.25 NA), 40X (0.65 NA, Spring), 100X (1.25 NA, Spring, Oil)
* Power Supply: 110V and 220V, CE certified
* Four Fluorescence DIN Objectives, FLUOR 4X, 10X, 40X and 100X
* One Complete Set of Fluorescence Kit
* One 3.0 MP Low-Light, Low-Lux, True Color Digital Camera
call our toll free (***) 950-2888, 8:00am - 6:00pm PST, Monday - Friday
Accessories listed below are compatible with above microscope. They can boost the microscope with the extra features. Click on the items you are interested in for detail or purchase.
