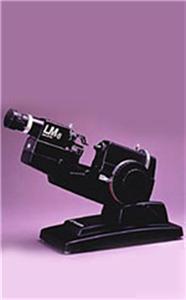

New topcon lm-8 lens meter lensometer focimeter
Better results are what you will see with the new LM-8 series of lensmeters. An improved optical system with newly coated optics provides a sharp target image for fatigue free operation. The new LED illuminated target revolutionizes lensometry with brighter, glare free viewing only dreamed of with other instruments.
This traditional style target uses a familiar crosshair target already familiar to many user.
The newly designed eyepiece provides less shading effect. With an easier view, the measurement procedure becomes less fatiguing.
The enhanced view of the axis scale makes reading even easier.
A new cartridge type marking device makes the dot targets more noticeable, especially on A /R coated lenses. Also, the new cartridges are less cumbersome to replace than earlier ink pad assemblies.
Battery operated LED light source no power cable required
Place this unit anywhere - there is no need for a power cable. If you wish, an AC adapter may be added to the unit. The LED light source eliminates the need for constant bulb replacement. The "sleep mode" preserves battery life. 2 D batteries are included.
Contact lens measurement1_800_755_5919
Both soft and hard contact lenses may be measured. The base locking mechanism allows for a 90 degree up-right position to make this procedure more practical.
The prism compensator with locking device allows for measurement of lenses with prismatic power above 5 diopters. The scale on the compensator has a range of 14 prism diopters.
0.125D up to +/- 5D / 0.25D above +/- 5D
0 to 6 prism diopters 1 graduations
0 to 90 degree, freely adjustable
Battery operated (1.5V x 2) Auto shut off 5 min.
