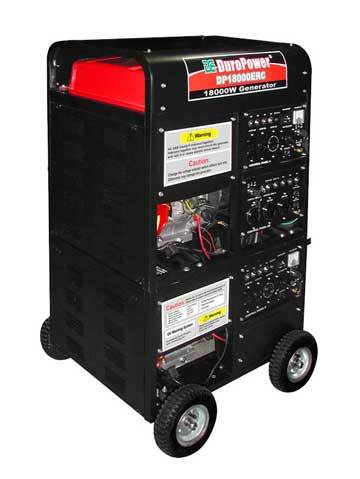

Duropower DP18000ERC 18000W industrial gas generator
The DP18000ERC Features & Specifications( Available in California too)
1. 32.0 HP Air Cooled OHV Engine
2x16.0HP, 2x420cc, Air Cooled, OHV, 4 Stroke Engine With Low Oil Shutoff, Smooth Running, EZ Pull Starting & E-start ( 2007 EPA & CARB Certificate).
Long 16-Hour Run Time At 50% Rated Output.
With AVR for Consistent flow of 120/240V Power Under Different Loads.
5. 13.0 Gallon Tank With Gauge
All Steel 13.0 Gallon Fuel Tank With EZ-read Gauge
Full Power Panel With Engine Shutoff Switch, Voltmeter, Hourmeter, Voltage Selector, AC & DC Circuit Protector, AC & DC Terminal & Power Outlets.
8. 8 Pole Single Phase 120V AC & 2 Pole 120V/240V AC & 1 Pole 240V AC
& 3 Pole 12V DC & 1 Pole 24V DC Output Generator
Fully Protected 4 Pole 120V/ 60Hz Max. Current 20A AC Output (NEMA 5-20R)
2 Pole 120V/ 60Hz Max. Current 30A AC Output (NEMA L5-30R)
2 Pole 120V/60Hz Max. Current 50A AC Output (NEMA 10-50R)
2 Pole 120/240V Max. Current 30A AC Output (NEMA L14-30R)
1 Pole 240V Max. Current 50A AC Output (NEMA 10-50R)
3 Pole 12V DC with Max Current 8.3A
1 Pole 24V DC with Max Current 8.3A DC Battery Recharging Cables Included.
