Testmaster splicers test set model 108
Testmaster Splicers Test Set Model 108
Testmaster Splicers Test Set Model 108 industrial Technology Inc.

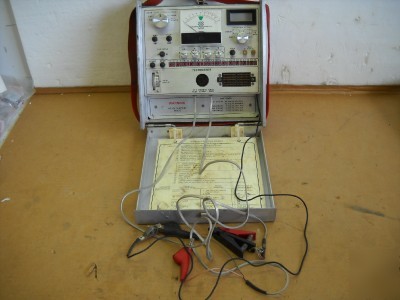

This is a used communication test unit with some scratches and normal wear, but no apparent damage. I have not been able to test this unit. Serial Number 880465. It has the operating manual and testing guide, and appears to have all the cables. Some information from the company website follows:
The Testmaster Splicer s Test Set Model 108 is a rapid pair tester that
is particularly well suited for testing large numbers of non-working pairs
such as in newly constructed cables. The Testmaster excels at conform-
ance testing and will detect opens, shorts, grounds, crosses and splits
with a single-ended test. No connection is needed at the far end. Cables
can be tested as they are spliced to modular connectors such as MS2
or 710. Splicing mistakes and bad pairs are found immediately, not when
the cable is placed into service. The Testmaster s speed makes it ideal
for verifying the accuracy of large cable jobs.
* Automatic Testing - Scans a 25 pair group in as little as 3.5 seconds
indicating defects such as shorts, grounds, opens, crosses and splits.
Defective pairs are indicated byan audible alarm and LED.
* Test Non-Working Pairs As They Are Sliced - Use the 108 at
the Main Distribution Frame, a cross connect box, or connect to
one or two cuter pressers to test cables as they are spliced.
* Stores Two Different Cable Capacitance Values - Useful for
testing a cable both before and after it is spliced.
* Tests Defective Cable Pairs - If pairs are found to be defective
using the SCAN function, they may be analyzed further using the
TEST, DM, or CAP functions.
* Locates Faults - A Large digital meter may be used to locate
opens or shorts (DM function). Reads either length or distance-
* Sends Tone - 577 Hz tone may be sent either simplex, which is
not audible to subscirbers, or grounded to identify reversals.
* Talk Function - A power built-in talk circuit provides communication
with either a headset or handset
