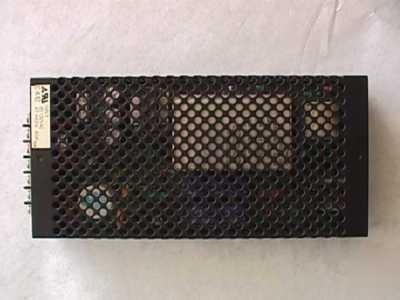

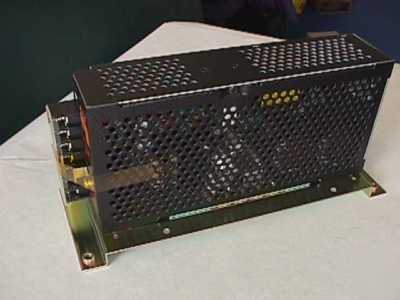

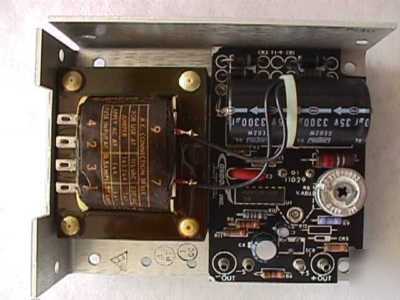

One lot of 3 dc power supplies
USED TO SET IT UP TO CHECK IT OUTEXCELLENT CONDITION AND WORKS FINE
PIN 1=AC2, PIN 2=AC1, PIN 3=FG, PIN 4=RC, PIN 5= -VOLTS, PIN 6= +V, PIN 7= +S
INPUT 85-132 VAC 47-400HZ 46 W

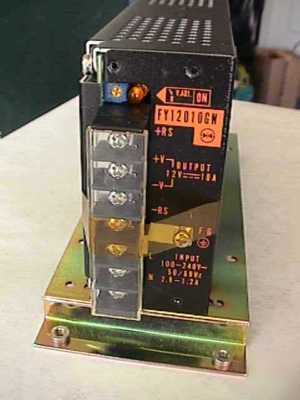

INPUT 50/60HZ AC100-240 2.8-1.2A
THERE IS A VOLTAGE ADJUST AND POWER ON INDICATOR
PINS 1&2 INPUT AC, PIN 3 IS FG, PIN 4 IS RS, PIN 5 = -V OUT, PIN 6 = +V OUT, PIN 7= +RS
