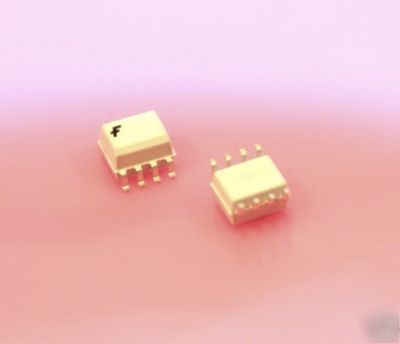

HCPL0639 dual optocoupler high speed 10MB logic gate X4
Dual Channel High Speed 10MBit optocoupler
The HCPL06XX optocouplers consist of an AlGaAS
LED, optically coupled to a very high speed integrated
photo-detector logic gate with a strobable output (single
channel devices). The devices are housed in a compact
small-outline package. This output features an open collector,
thereby permitting wired OR outputs. The
HCPL0600, HCPL0601 and HCPL0611 output consists
of bipolar transistors on a bipolar process while the
HCPL0637, HCPL0638, and HCPL0639 output consists
of bipolar transistors on a CMOS process for reduced
power consumption. The coupled parameters are guaranteed
over the temperature range of -40 C to +85 C.
An internal noise shield provides superior common
