Delfield custom 533-sr split refrigerated/dry case nsf

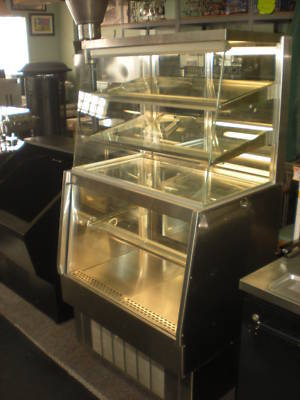

Nice Custom Delfield Half Dry Half Refrigerated Display Case.

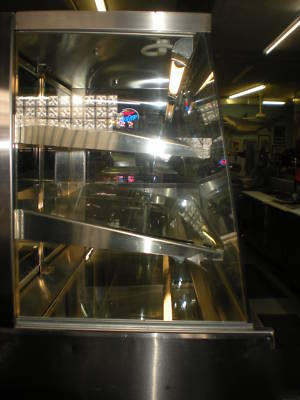

Top half is dry (for bake goods etc)
Bottom Half (for liquids and creams etc)
This Item looks great and works great and would be good very useful in Coffee and Donut Shops.
This Item sells new for over $9000
Total size of the unit is 6 feet tall by 27.5" wide.
Top half (dry case) 35"x25.5" wide 22.5" deep
Bottom Half (refrigerated) 35" wide x 20" tall x 27" deep
Local Pick Up Only!!! CLEVELAND OHIO.
Call with any questions (***)-431-6665
The refrigerated lower section has a 0.62
(1.58 cm) thick double pane insulated Low-E/Argon filled LOF
tempered glass front and top. The interior sides are mirrored
stainless steel with ABS plastic backing. Exterior sides are
18-gauge stainless steel and are foamed with 1.50 (3.81
cm) polyurethane insulation. The front nosing is 18-gauge

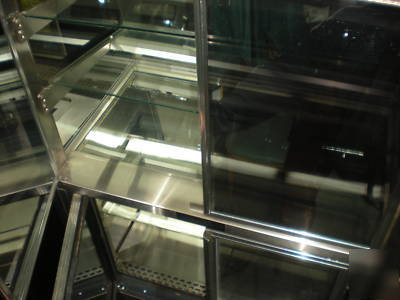

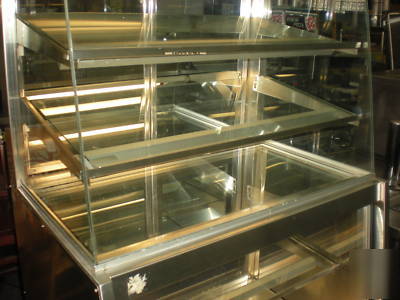

The dry upper section has front and sides of 0.25 (.635 cm)
thick safety glass. The top of the dry section is an 18-gauge
stainless steel shelf. Two 16-gauge support posts run the full
length of the unit at rear. The base is 14-gauge galvanized
steel covered with a 20-gauge stainless steel exterior. Base
is mounted on recessed adjustable feet for leveling. All of the
shelves in the refrigerated and dry section have 14-gauge
stainless steel brackets and 0.25 (.635cm) thick safety glass
The refrigerated lower section has (2) hinged, double
pane, insulated tempered glass Pike doors at rear with
mirror finish. The refrigerated doors are self-closing and are
mounted in a thermo-plastic frame. The dry upper section has
(2) hinged 0.25 (.635cm) thick mirrored safety glass Pike
doors. All doors are removable for cleaning.

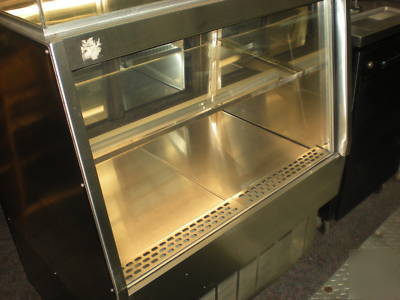

The refrigerated lower section has
20-gauge mirrored stainless steel interior sides with ABS
plastic backing. This section has (1) glass shelf mounted on
14-gauge stainless steel brackets and (2) 72 watt fluorescent
lights (120v-60hz-1ph). The dry upper section has (2) glass
shelves mounted on 14-gauge stainless steel brackets and
(3) 72 watt fluorescent lights (120v-60hz-1ph) depending on
the model. On/off switches for the refrigeration and lights are
located in the base of the unit. Self-contained unit has an 8 ft.
All Models: Temperature is regulated by a
pressure control. The unit is designed to maintain 33 -41 F
at ambient room temperatures of 75 F and realitive humidity
of 55%. The refrigerant used is R-404A.
the condensing unit is bottom-mounted,
with air intake from the front and exhaust from the back.
